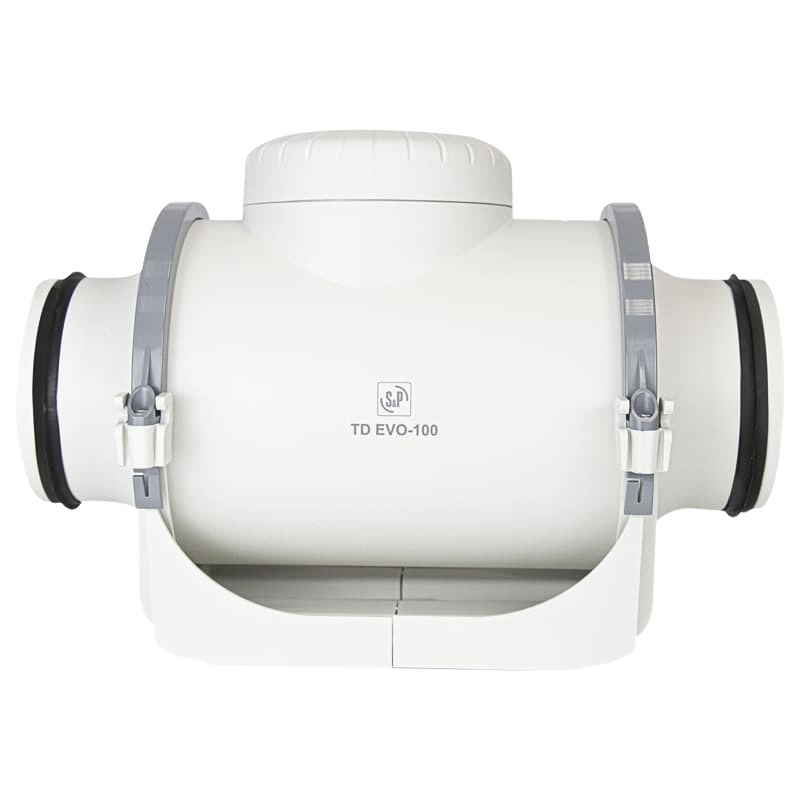

TD EVO-100 T Soler & Palau mixed flow inline duct fan with timer Ø100mm
€168.65 Incl. VAT
Soler & Palau TD EVO-100 T high-performance mixed flow in-line duct fan with adjustable timer designed for 100 mm circular duct systems. Thanks to its low-profile casing and advanced aerodynamic design, it delivers strong airflow with minimal noise, making it an excellent solution for residential and commercial ventilation systems, especially where installation space is limited. IP44 and air flow up to 210 m³/h.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
– Soler & Palau TD EVO-100 T mixed flow in-line duct fan for 100mm circular ducts with adjustable timer 1-30 min.
– 3 speeds. Not suitable for speed control.
– Airflow 210 m³/h and sound level up to 25 dB(A)

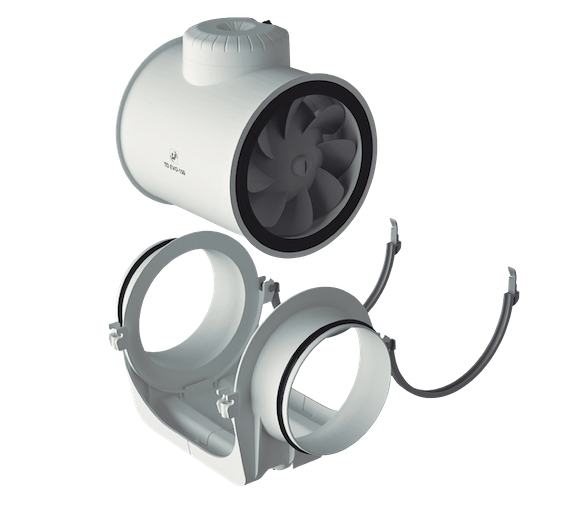

– The unique design of the support bracket allows the motor and impeller assembly to be fitted or removed without dismantling the adjacent ducting.
– The low profile of the TD-EVO fans makes them the most effective solution for installations where the space of installation is limited such as false ceilings.

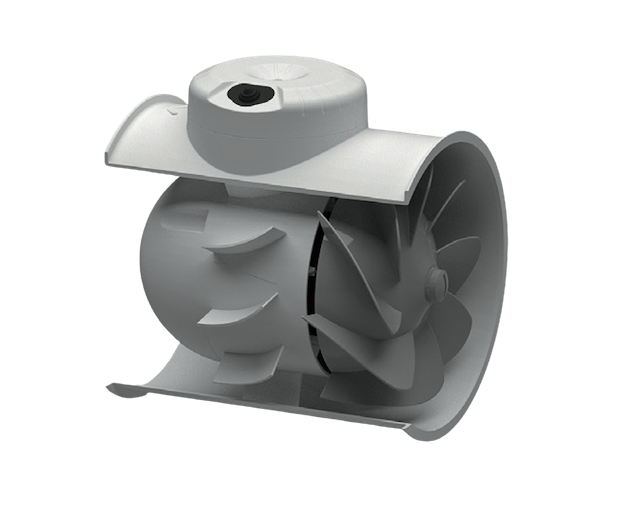

– Optimised design of the impeller, guide vane and outlet diffuser, to increase performance and lower the sound level.
– Airtight construction with double-injection sealing between the main body and he support bracket to avoid air leaks.
– Rubber gaskets on the flanges to improve airtightness with the ducts.
– Silent-block between the motor and the guide vane to reduce the motor’s vibrations and lower the sound level of the installation, even in terms of speed regulation
– To reverse the direction of the airflow simply return the main fan body without having to disassemble the support foot. The rotation of the main fan body also allows to position the terminal box to allow the best accessibility.
Motor:
– 3 speeds
– Single-phase
– AC motor
– 220-240V 50/60Hz
– Class F
– IP44
– Thermal protection with manual reset.
– Working temperature: -20 to + 60ºC.
– Ideal in-line duct fan solution for a wide range of general residential or commercial ventilation application into.
– Made in Spain.
| Weight | 2 kg |
|---|---|
| Dimensions | 330 × 230 × 244 mm |
