TD-1300/250 SILENT 3V Soler & Palau quiet mixed flow in-line duct fan Ø250mm
€864.15 Incl. VAT
Soler & Palau TD-1300/250 SILENT 3V quiet Ø250mm mixed flow inline duct fan with 3-speed control, designed for high-performance residential, commercial, and industrial ventilation systems. Delivers powerful airflow up to 1320 m³/h with low noise levels of just 31–36 dB(A), making it ideal for offices, workshops, kitchens, and HVAC applications. Features a durable Class F motor and sound-insulated housing for reliable long-term operation.
Available on back-order
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
– The Soler & Palau TD-1300/250 SILENT 3V mixed flow in-line duct fan with Ø250mm connection designed to provide high-performance airflow and exceptional acoustic comfort in any environment.
– It is the ideal solution for industrial, commercial, and residential applications where reliable, energy-efficient, and ultra-quiet ventilation is required.

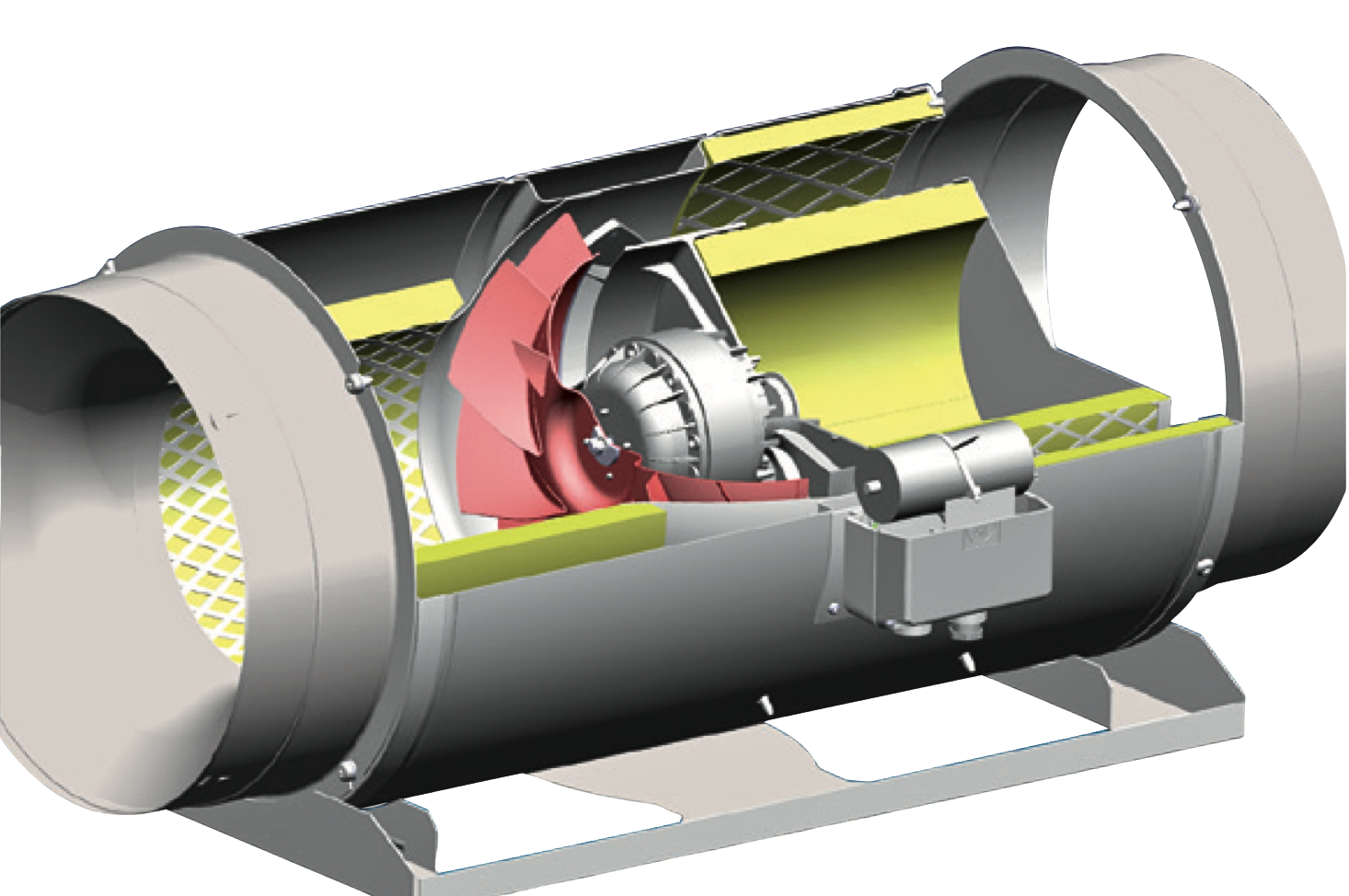

– Constructed from sheet steel with durable epoxy polyester paint, the TD-1300/250 SILENT 3V incorporates MO glass-fibre acoustic insulation inside the outer shell to absorb vibration and significantly reduce sound levels.
– Its aerodynamic inlet cone improves airflow efficiency while minimizing turbulence and pressure losses, ensuring smooth, stable operation even in continuous-use systems.

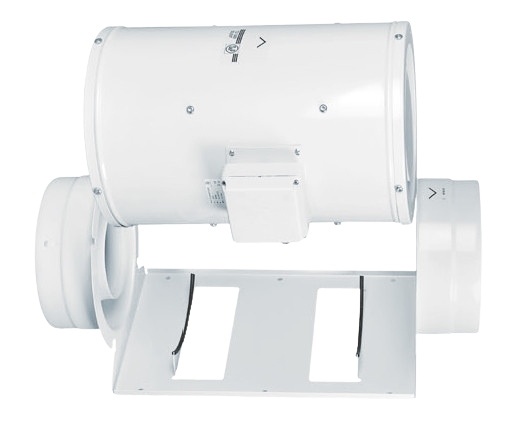

– The fan’s removable motor and impeller assembly allow easy cleaning and maintenance without dismantling the duct system — a key advantage for professional installers.
– Speed 2030/2230/2530 r.p.m., maximum absorbed current: 0,6/0,68/0,85 A.
– An external terminal box (IP55) and IP44-rated motor housing provide secure electrical protection for long-term reliability, even in demanding ventilation setups.
– Powered by a three-speed, 230 V / 50–60 Hz external-rotor aluminium motor, this unit features Class F insulation, ball bearings, and integrated thermal protection.
– The motor can be speed-controlled to suit different airflow requirements, offering flexibility and energy savings. Suitable with 3-speed switches COM-3 and INTER 4P and single phase speed controller RMB-1,5 and REB-1.
– The TD-1300/250 SILENT 3V operates with extremely low noise levels — just 31 to 36 dB(A) — making it ideal for environments where people work, meet, or relax for long periods, such as offices, hotels, restaurants, and residential buildings.
– Manufactured in Spain.
| Weight | 20 kg |
|---|---|
| Dimensions | 755 × 408 × 345 mm |
