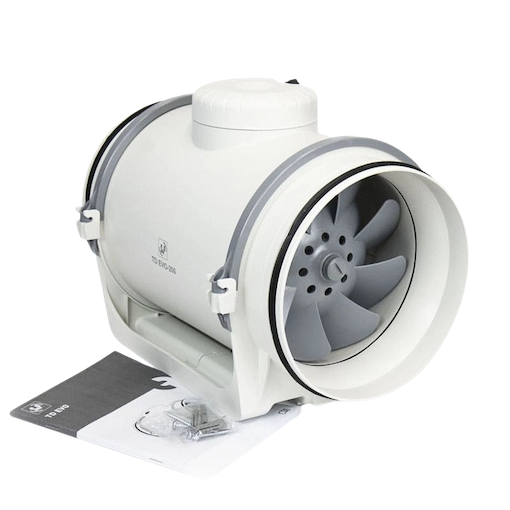

TD EVO-200 Soler & Palau mixed flow in-line duct fan Ø200mm
€393.55 Incl. VAT
Soler & Palau TD EVO-200 low-profile mixed-flow in-line duct fan 200 mm. Suitable for residential, commercial, and light industrial ventilation installations, particularly where installation space is limited. It features variable speed control, IP44 protection, airflow of up to 900 m³/h, and sound levels of up to 47 dB(A).
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Range of low profile in-line mixed-flow fans for circular ducts.
The range comprises seven diameters and covers a flow range from 210 to 1840 m3/h.

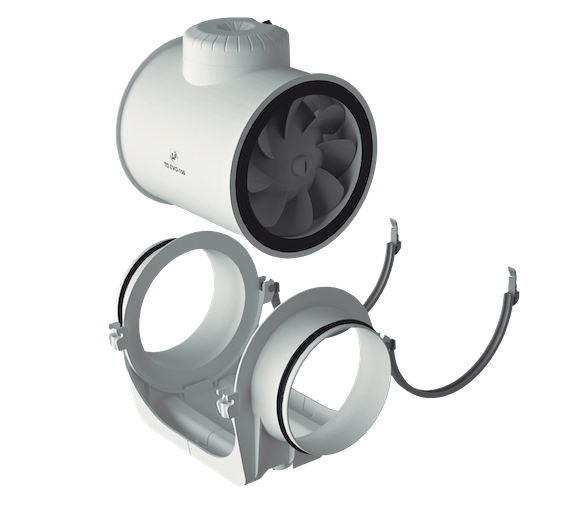

The unique design of the support bracket allows the motor and impeller assembly to be fitted or removed without dismantling the adjacent ducting.
Low profile compact casing manufactured in tough reinforced plastic.
Optimised design of the impeller, guide vane and outlet diffuser, to increase performance and lower the sound level.
Airtight construction with doubleinjection sealing between the main body and he support bracket to avoid air leaks. Rubber gaskets on the flanges to improve airtightness with the ducts.
Silent-block between the motor and the guide vane to reduce the motor’s vibrations and lower the sound level of the installation, even in terms of speed regulation.

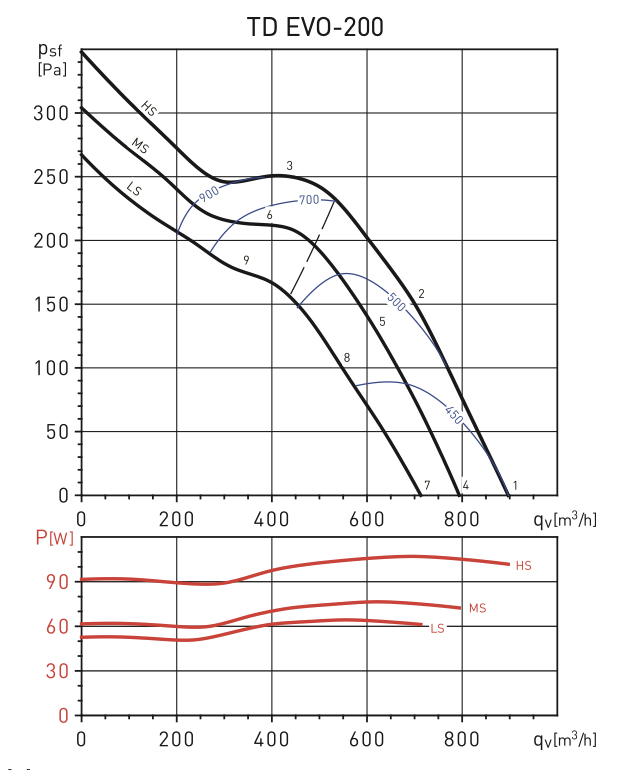

Technical information:
Fitted with a 3-speed single-phase AC motor:
Diameter(mm): 200
Airflow capacity (m³/h): 710/790/900
Sound level (dB(A)): 43-47
Power consumption (W): 64/76/107
Temperature range (°C): -20 to + 60
Voltage (V): 220-240
Frequency (Hz): 50-60
IP rating: IP 44
Motor also speed controllable by voltage in high speed
Thermal protection with manual reset
Motor Class F
| Weight | 4.9 kg |
|---|---|
| Dimensions | 408 × 296 × 284 mm |
