TD EVO-315 Soler & Palau mixed flow inline duct fan Ø315mm
€440.40 Incl. VAT
Soler & Palau TD EVO-315 low-profile 315mm mixed-flow inline duct fan delivering airflow up to 1840 m³/h. Features a quiet 3-speed ball bearing motor, IP44 protection and high-performance ventilation for residential, commercial and industrial applications.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Range of low profile in-line mixed-flow fans for circular ducts.
The range comprises seven diameters and covers a flow range from 210 to 1840 m3/h.

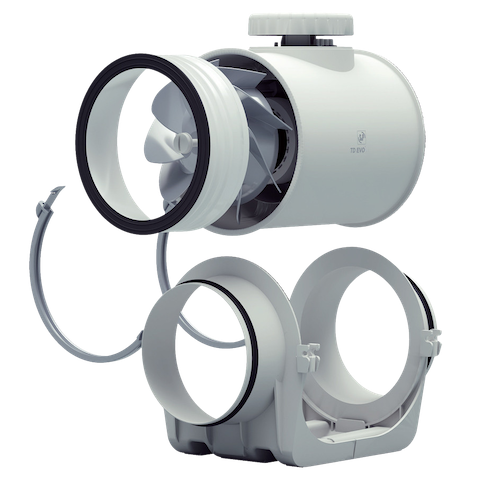

The unique design of the support bracket allows the motor and impeller assembly to be fitted or removed without dismantling the adjacent ducting.
Low profile compact casing manufactured in tough reinforced plastic.
Optimised design of the impeller, guide vane and outlet diffuser, to increase performance and lower the sound level.
Airtight construction with doubleinjection sealing between the main body and he support bracket to avoid air leaks. Rubber gaskets on the flanges to improve airtightness with the ducts.
Silent-block between the motor and the guide vane to reduce the motor’s vibrations and lower the sound level of the installation, even in terms of speed regulation.
| Weight | 9.5 kg |
|---|---|
| Dimensions | 525 × 431 × 382 mm |
