TD EVO-150 T Soler & Palau mixed flow inline duct fan with timer Ø150mm

Soler & Palau TD EVO-150 T low-profile mixed-flow inline duct fan with timer is designed for 150mm ventilation ducts in residential, commercial and light industrial ventilation systems. The adjustable run-on timer (1–30 minutes) keeps the fan operating after switch-off to improve moisture removal and indoor air quality.

Delivering airflow up to 560 m³/h, the TD EVO-150 T combines high ventilation performance with quiet operation. The 3-speed AC motor with long-life ball bearings ensures reliable operation, while the integrated Silent-Block motor mounting significantly reduces vibration and installation noise.

The compact reinforced plastic housing features an airtight double-sealed construction with rubber gaskets on the duct connections to minimise air leakage and maximise ventilation efficiency. Maintenance is quick and convenient thanks to the removable motor and impeller assembly, which can be serviced without disconnecting the ventilation ducts.

Key Features

• Mixed-flow inline duct fan for 150mm ducting
• Very low profile
• Adjustable run-on timer (1–30 minutes)
• Airflow up to 560 m³/h
• Sound level un to 45 dB(A)
• Quiet operation with Silent-Block vibration isolation
• Long-life ball bearing motor
• Three-speed AC motor (not suitable for speed control)
• Airtight housing with rubber-sealed duct connections
• Compact reinforced plastic casing
• Removable motor and impeller assembly for easy maintenance

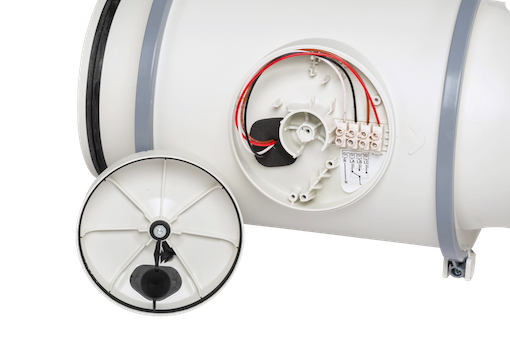

• Large terminal box for convenient wiring
• Thermal overload protection with manual reset
• IP44 protection rating
• Operating temperature: -20°C to +60°C
