TD EVO-315 T Soler & Palau mixed flow inline duct fan with timer Ø315mm
€457.55 Incl. VAT
Soler & Palau TD EVO-315 T low-profile 315mm mixed-flow inline duct fan with adjustable run-on timer. Delivers airflow up to 1840 m³/h with a quiet 3-speed ball bearing motor and IP44 protection, making it ideal for residential, commercial and industrial ventilation systems.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
– The Soler & Palau TD EVO-315 T is a versatile, energy-efficient in-line mixed-flow duct fan with an integrated adjustable timer (1–30 minutes), offering exceptional airflow performance and quiet operation for modern ventilation systems.
– Designed for 315mm circular ducts, this fan combines compact design, acoustic optimization, and ease of installation, making it ideal for residential, commercial, and industrial environments that require continuous or timed ventilation.
– Airflow capacity 1840 m³/h, providing flexible solutions for diverse HVAC applications.

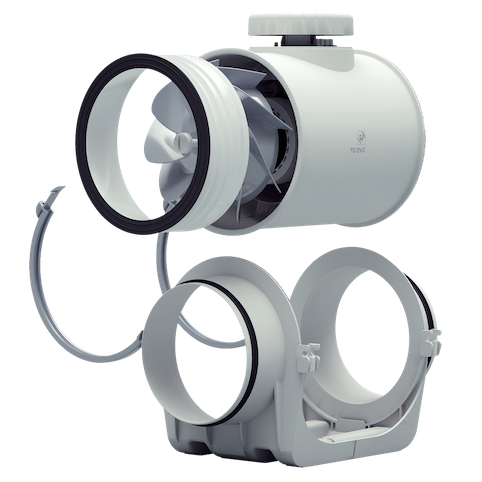

– The unique support bracket design allows the motor and impeller assembly to be fitted or removed without dismantling adjacent ducting — a key advantage for maintenance and installation efficiency.
– The low-profile, reinforced plastic housing ensures long-term durability and resistance to mechanical stress.
– Its aerodynamically optimized impeller, guide vane, and outlet diffuser increase performance and reduce overall noise levels, while rubber gaskets on the flanges ensure an airtight fit with duct systems.
– A double-injection sealing system between the fan body and support bracket further prevents air leakage, improving system efficiency and reliability.
– For enhanced acoustic comfort, the fan integrates silent-block dampers between the motor and guide vane, significantly reducing vibration and sound transmission — even when operating at variable speeds.
– Powered by a 3-speed single-phase 220–240V AC motor, the TD EVO-315 T includes thermal overload protection with manual reset.
– Not suitable for speed control.
– Rated IP44 and Class F, it ensures safe and reliable operation in both commercial and residential ventilation systems.
– Made in Spain.
| Weight | 9.5 kg |
|---|---|
| Dimensions | 525 × 431 × 382 mm |
