SILENTUB-100 Soler & Palau quiet inline duct fan Ø100mm
€48.90 Incl. VAT
Soler & Palau SILENTUB – 100 ultra-quiet axial in-line duct fan designed for small rooms and transfer ventilation. With a ball-bearing motor, backdraft shutter, 37.5 dB(A) noise level and Ø100 mm connection, it delivers efficient airflow for residential and commercial spaces.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
The Soler & Palau SILENTUB-100 is a compact and ultra-quiet axial in-line fan designed for efficient ventilation in residential and light commercial spaces.
SILENTUB TECHNICAL INFORMATION
KEY FEATURES
- Standard Ø100 mm connection – compatible with most round ducts
- Silent-block motor mounting – reduces vibration and minimises noise
- Durable ball-bearing motor – ensures long service life
- Ultra-quiet operation – only 37.5 dB(A) for maximum comfort
- Energy-efficient performance – 12 W power consumption
- Airflow capacity – up to 100 m³/h at 2450 rpm
- Integrated backdraft damper – prevents reverse airflow and heat loss
- Class II insulation and IP44 protection rating
- Made in Spain
DIMENSIONS
APPLICATIONS
- Transfer ventilation between rooms
- Bathrooms, kitchens, and utility spaces
- Offices and small commercial areas
- Improving airflow in compact spaces

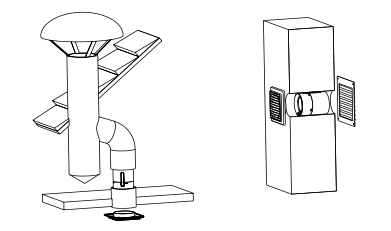

SILENTUB-100 can be flush mounted into the wall, ideal for ventilating small areas or to exchange heat between adjoining rooms.

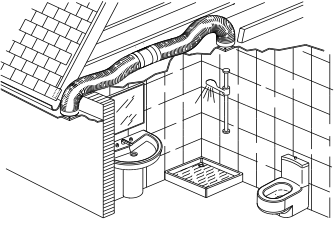

INSTALLATION
– Suitable for in-duct installation or wall integration
– Ideal for use in short duct systems and confined spaces
ADDITIONAL INFORMATION
With its compact design, quiet operation, and reliable performance, the SILENTUB-100 is a smart choice for efficient ventilation in homes and commercial environments.
| Weight | 0.7 kg |
|---|---|
| Dimensions | 200 × 135 × 178 mm |
