TD EVO-160 Soler & Palau mixed flow inline duct fan Ø160mm
€209.80 Incl. VAT
Soler & Palau TD EVO-160 low-profile 160mm mixed-flow inline duct fan. Delivers airflow up to 560 m³/h with quiet operation, a long-life ball bearing 3-speed motor and IP44 protection for residential, commercial and light industrial ventilation.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Soler & Palau TD EVO-160 Mixed-Flow Inline Duct Fan Ø160mm
The Soler & Palau TD EVO-160 low-profile mixed-flow inline duct fan is designed for 160mm ducting, providing efficient air extraction and supply for residential, commercial and light industrial ventilation systems. Its compact design allows installation in confined spaces while delivering airflow up to 560 m³/h with low operating noise.
The aerodynamic impeller and optimised airflow path maximise ventilation efficiency, while the integrated Silent-Block motor mounting reduces vibration for quieter operation. A long-life ball bearing motor with 3-speed operation ensures dependable performance and is compatible with REB-1 N and RMB-1.5 speed controllers.

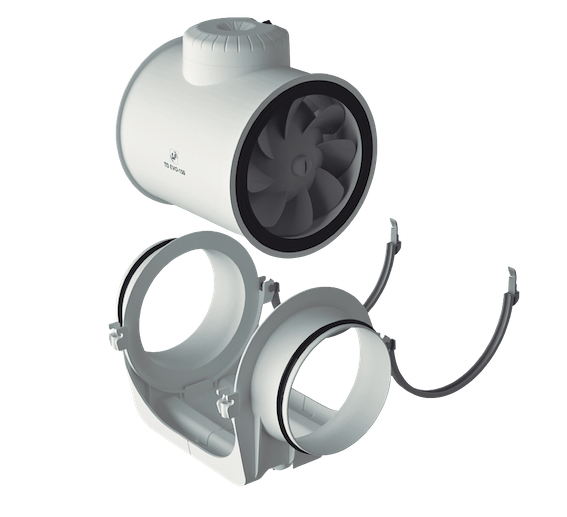

An airtight reinforced plastic housing with double-sealed construction and rubber gaskets helps minimise air leakage and improve overall system efficiency. The removable motor and impeller assembly allows fast servicing without disconnecting the ductwork, reducing maintenance time.
Ideal for bathrooms, kitchens, utility rooms, offices, retail premises and other ventilation systems where quiet, reliable and energy-efficient airflow is required.
Key Features
- Low-profile 160mm mixed-flow inline duct fan
- Airflow up to 560 m³/h
- Long-life ball bearing motor
- 3-speed AC motor
- Compatible with REB-1 N and RMB-1.5 speed controllers
- Quiet operation with Silent-Block vibration isolation
- Reinforced airtight plastic housing
- Rubber-sealed duct connections
- Easy maintenance with removable motor and impeller assembly
- Thermal overload protection with manual reset

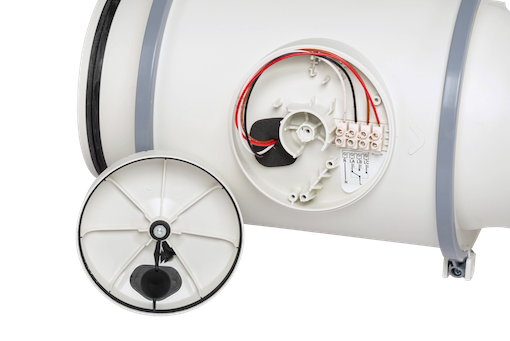

- Large terminal box
- IP44 protection rating
- Made in Spain
Applications
Suitable for bathrooms, kitchens, utility rooms, offices, shops, restaurants and light industrial ventilation systems requiring efficient air extraction or fresh air supply through 160mm ducting. Ideal for installations where quiet operation, high airflow and easy maintenance are important.
| Weight | 3.7 kg |
|---|---|
| Dimensions | 370 × 279 × 254 mm |
