TD EVO-150 Soler & Palau mixed flow inline duct fan Ø150mm
€209.80 Incl. VAT
Soler & Palau TD EVO-150 low-profile mixed-flow inline duct fan for Ø150 mm ventilation systems, delivering airflow up to 560 m³/h. Features variable speed control, quiet operation and IP44 protection, making it ideal for residential, commercial and light industrial ventilation, air extraction and fresh air supply.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Soler & Palau TD EVO-150 is a low-profile mixed-flow inline duct fan for Ø150 mm ventilation systems, designed to provide efficient, low-noise air extraction in residential and commercial buildings. Its compact housing makes it ideal for installations where space is limited, while the ball bearing motor delivers reliable, long-lasting performance.
An advanced mixed-flow impeller, guide vanes and integrated outlet diffuser optimise airflow while reducing operating noise. The motor is mounted on silent-blocks that absorb vibration, ensuring quieter operation throughout the ventilation system.

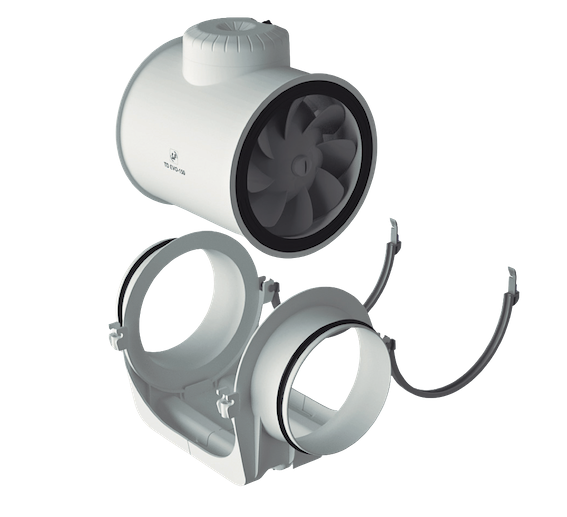

The durable reinforced plastic casing incorporates an airtight double-sealed design with rubber gaskets on the duct connections to minimise air leakage and maximise ventilation efficiency. The removable motor and impeller assembly allows fast maintenance without dismantling the connected ductwork.
Suitable for bathrooms, kitchens, utility rooms, offices and other residential or commercial ventilation systems requiring quiet, efficient and dependable airflow.
Technical information:
Diameter (mm): 150
Ball beraings
3-speed motor
Suitable with REB-1 N and RMB-1,5 speed controllers
Airflow (m³/h): 430/490/560
Sound level (dB(A)): 32/44/45
Power (W): 33/38/45
Temperature range (°C): -20 to + 60
Voltage (V): 220-240
Frequency (Hz): 50-60
IP 44
AC motor, Class F
Key Features:
150mm duct fan
Long lasting ball bearing motor
Very low profile
Rubber gaskets on the flanges
Silent-block to reduce motor vibrations
Motor also speed controllable by voltage in high speed
Thermal protection with manual reset

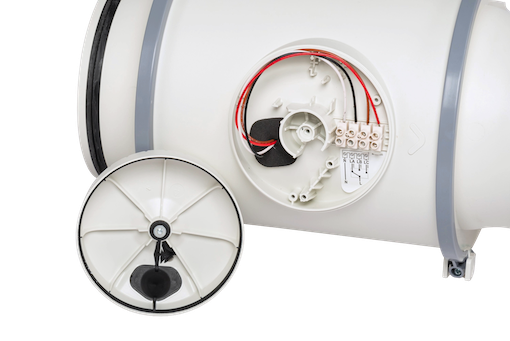

Large size terminal box
Easy maintenance
| Weight | 37 kg |
|---|---|
| Dimensions | 370 × 279 × 254 mm |
