TD EVO-125 Soler & Palau mixed flow inline duct fan Ø125mm
€166.99 Incl. VAT
Soler & Palau TD EVO-125 high-efficiency mixed-flow inline duct fan with 3 speeds designed for ventilation systems with 125 mm circular ducts. Its compact low-profile housing and optimized impeller provide powerful airflow while maintaining quiet operation, making it suitable for residential, office, and light commercial ventilation where space is limited. The fan features adjustable speed control, IP44 protection, and delivers airflow performance of up to 310 m³/h.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Soler & Palau TD EVO-125 quiet inline mixed flow duct fan with ball bearings for Ø125mm ventilation systems.
Low profile compact casing manufactured in tough reinforced plastic.

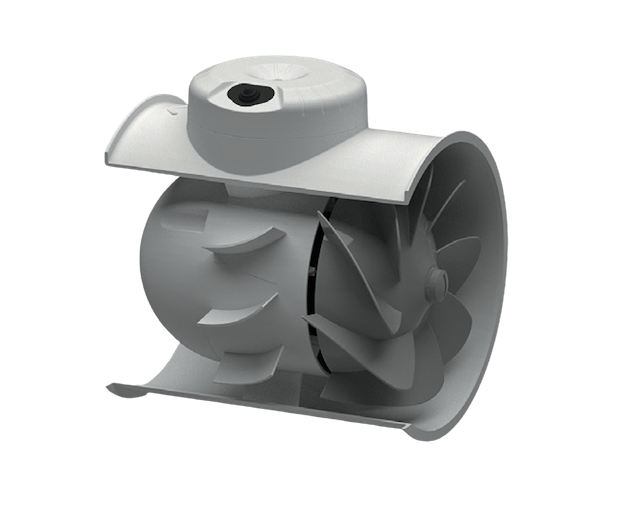

Optimised design of the impeller, guide vane and outlet diffuser, to increase performance and lower the sound level.
Airtight construction with doubleinjection sealing between the main body and he support bracket to avoid air leaks. Rubber gaskets on the flanges to improve airtightness with the ducts.
Silent-block between the motor and the guide vane to reduce the motor’s vibrations and lower the sound level of the installation, even in terms of speed regulation.

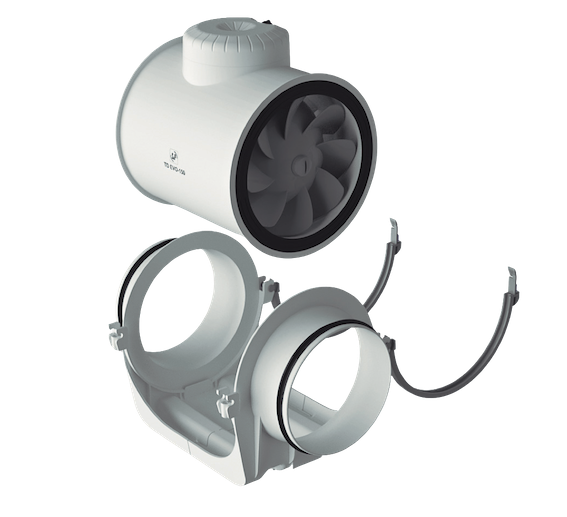

The unique design of the support bracket allows the motor and impeller assembly to be fitted or removed without dismantling the adjacent ducting.
The TD EVO-125 is a ideal in-line duct fan for a wide range of general residential or commercial ventilation application into.
Key Features:
Very quiet 125mm duct fan
Long lasting ball bearing motor
Very low profile
Rubber gaskets on the flanges
Silent-block to reduce motor vibrations
Motor also speed controllable by voltage in high speed
Thermal protection with manual reset
Large size terminal box
Easy maintenance
Technical information:
Connection diameter (mm): 125
Ball beraings
3-speed motor
Suitable with REB-1 N and RMB-1,5 speed controllers
Airflow capacity (m³/h): 210/240/310
Sound level (dB(A)): 37
Power consumption (W): 19/21/29
Temperature range (°C): -20 to + 60
Voltage (V): 220-240
Frequency (Hz): 50-60
IP 44
AC motor, Class F
| Weight | 2.1 kg |
|---|---|
| Dimensions | 330 × 230 × 244 mm |
