TD-160/100 N SILENT Soler & Palau Quiet Mixed Flow In-line Duct Fan Ø100mm
€120.00 Incl. VAT
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Soler & Palau TD-160/100 N SILENT In-line Duct Fan Ø100 mm
The TD-160/100 N SILENT mixed-flow inline duct fan is designed for Ø100 mm ventilation systems where compact installation, reliable airflow and low noise are important. With a maximum airflow of 180 m³/h and sound pressure level from 24 dB(A) at maximum speed, the fan is suitable for residential and commercial ventilation applications where quiet operation is required.
Unlike the larger TD-SILENT models that use sound-absorbent insulation, the TD-160/100 N SILENT features the special patented S&P floating motor system. The motor is mounted on silent elastic blocks that absorb vibrations, helping the compact Ø100 mm duct fan achieve a very low operating noise level.
The two-speed 230 V / 50 Hz motor is speed controllable and equipped with ball bearings and safety thermal overload protection. Depending on the selected speed, the fan delivers 150 or 180 m³/h, with sound pressure levels of 22 or 24 dB(A) and maximum power consumption of 18 or 29 W.

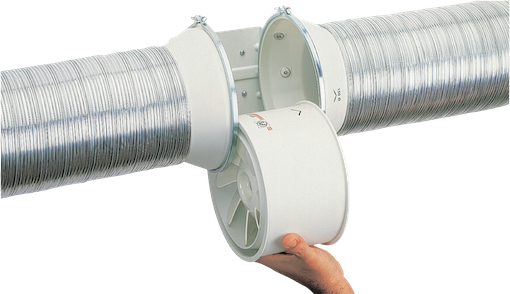

Its compact, low-profile construction makes the TD-SILENT range particularly suitable where installation space is restricted. The fan can be integrated directly into ductwork, providing an effective solution for concealed ventilation installations and ceiling voids
KEY FEATURES
- Mixed-flow inline duct fan
- For Ø100 mm ventilation ducts
- Maximum airflow: 180 m³/h
- Two operating speeds: 150 / 180 m³/h
- Low sound pressure level: 22 / 24 dB(A)
- Two-speed, speed-controllable motor
- Motor mounted on vibration-absorbing silent elastic blocks
- Motor with ball bearings
- Safety thermal overload protection
- Maximum power consumption: 18 / 29 W
- Motor speed: 2200 / 2400 rpm
- Operating temperature: −20 °C to +40 °C
- Protection rating: IP44
- Duct connection: Ø100 mm
- Compact construction for space-restricted installations
- Compatible with COM-2, REGUL 2 switches and RMB-1.5, REB-1 speed controllers
TECHNICAL INFORMATION
DIMENSIONS
APPLICATIONS
The TD-160/100 N SILENT is suitable for ventilation systems where low noise and compact installation are required, including:
- Bathrooms, toilets and utility spaces
- Residential ventilation systems
- Offices and workplaces
- Small commercial premises
- Concealed duct installations
- Ceiling voids and other space-restricted installations
- Ø100 mm supply or extract ventilation ductwork
The TD-SILENT series is specifically intended to provide ventilation solutions in areas where people work or occupy the space for extended periods and low sound levels are important for comfort.
DOCUMENTS
TD-100 SILENT Mixed Flow In-line Duct Fan Technical Data Sheet
| Weight | 1.4 kg |
|---|---|
| Dimensions | 232 × 151 × 170 mm |
Related products

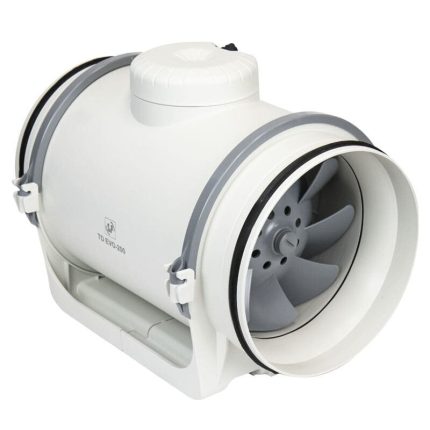

TD EVO-200 T Soler & Palau mixed flow in-line duct fan with timer Ø200mm
Soler & Palau TD EVO-200 T compact and ultra-silent in-line duct fan with timer (1-30min) ideal for residential and commercial ventilation systems. The TD Evo series offers energy-efficient, high-performance airflow with easy installation and maintenance. The low profile of the TD EVO-200 T fan makes it the most effective solution for installations where the space of installation is limited such as false ceilings
TD EVO-250 T Soler & Palau mixed flow in-line duct fan with timer Ø250mm
Soler & Palau TD EVO-250 T compact in-line mixed-flow duct fan with adjustable timer, engineered for quiet and efficient ventilation in residential, commercial, and light-industrial environments.The double-injection sealed body, rubber gaskets, and silent-block motor mount ensure airtight, vibration-free operation — delivering reliable performance for HVAC systems, offices, bathrooms, and kitchens.
TD-1000/200 SILENT T 3V Soler & Palau quiet mixed flow in-line duct fan with timer Ø200mm
Soler & Palau TD-1000/200 SILENT T 3V ultra-quiet Ø200mm mixed flow inline duct fan with adjustable timer and 3-speed control for efficient residential and commercial ventilation. Delivers powerful airflow up to 1040 m³/h with low noise levels of just 24–29 dB(A), making it ideal for bathrooms, kitchens, workshops, offices, and HVAC ventilation systems. Features a durable ball-bearing motor and sound-insulated housing for reliable long-term performance
TD-250 / 100 SILENT Soler & Palau quiet mixed flow inline duct fan Ø100mm
Soler & Palau TD-250/100 SILENT low noise Ø100mm mixed flow inline duct fan for residential and commercial ventilation systems. Featuring a 2-speed motor for flexible airflow control, acoustic sound insulation, and a motor mounted on Silent-Elastic Blocks to reduce vibration and noise, it delivers airflow up to 250 m³/h while maintaining exceptionally quiet operation from just 25 dB(A).
TD-250/100 SILENT T Soler & Palau quiet mixed flow in-line duct fan with timer Ø100mm
Soler & Palau TD-250/100 SILENT T ultra quiet mixed flow inline duct fan with an adjustable timer, ideal for bathrooms, utility rooms, offices, and commercial ventilation systems. Delivering airflow up to 250 m³/h and noise levels from just 25 dB(A), this low noise inline fan features a compact low-profile design for installations where space is limited.

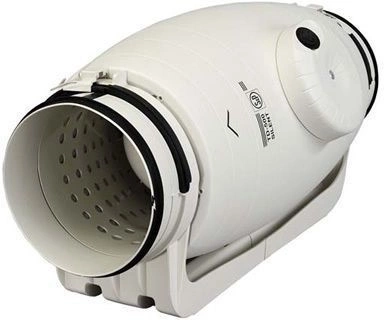

TD-800/200 SILENT T 3V Soler & Palau mixed flow inline duct fan with timer Ø200mm
