TD-350/125 SILENT Soler & Palau quiet mixed flow inline duct fan Ø125mm
€219.91 Incl. VAT
Soler & Palau TD-350/125 SILENT ultra quiet Ø125mm mixed flow inline duct fan with a 2-speed motor and acoustic sound insulation, designed for residential and commercial ventilation. Delivering airflow up to 330 m³/h with noise levels from just 23 dB(A), this low noise inline fan is ideal for bathrooms, kitchens, utility rooms, offices, and other spaces where quiet and efficient ventilation is required.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments

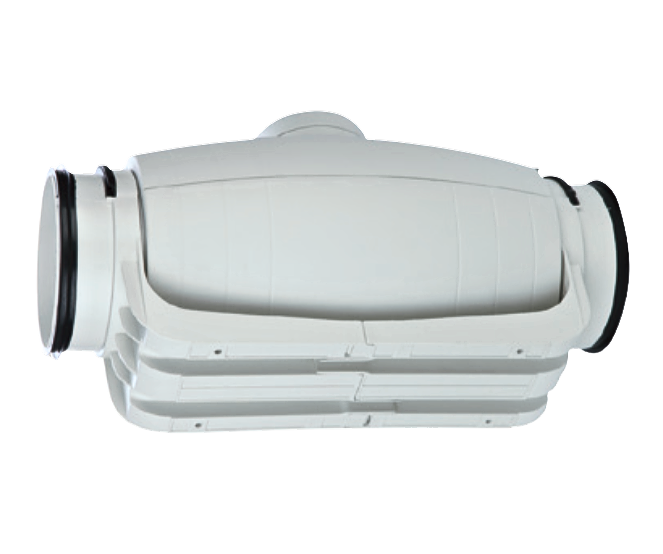

The Soler & Palau TD-350/125 SILENT is an ultra quiet Ø125mm mixed flow inline duct fan designed for residential and commercial ventilation systems. Featuring a 2-speed motor, airflow up to 330 m³/h, and ultra-low noise levels from just 23 dB(A), this low noise inline fan delivers efficient air extraction for bathrooms, kitchens, utility rooms, offices, and other spaces where quiet and reliable ventilation is essential.
Acoustic sound insulation and vibration-reducing rubber gaskets help achieve exceptionally quiet operation, while the long-life ball bearing motor ensures reliable and efficient ventilation performance.
The compact low-profile design makes the fan ideal for ceiling voids and other installations where space is limited.
Key Features
- Ø125mm mixed flow inline duct fan
- Ultra quiet operation – from 23 dB(A)
- Airflow up to 330 m³/h
- Adjustable 2-speed motor
- Long-life ball bearing motor
- Acoustic sound-absorbing insulation
- Specially designed internal casing for enhanced noise reduction
- Compatible with COM-2 and REGUL 2 two-speed switches
- Compatible with RMB-1.5 and REB-1 single-phase speed controllers
- Durable polypropylene housing
- High-efficiency ABS impeller
- Rubber gaskets on inlet and outlet connections for vibration reduction
- Mounting bracket included
- Suitable for wall or ceiling installation
- Detachable body for easy maintenance
- 360° rotatable terminal box
- Motor and impeller assembly removable without dismantling adjacent ductwork
- Thermal overload protection
- Manually resettable thermal fuse
- Motor insulation Class B
- Protection Class II
- IP44 rated
- Manufactured in Spain
Applications
Suitable for bathroom ventilation, utility rooms, kitchens, living areas, offices, workshops, retail premises, and commercial ventilation systems. This quiet inline duct fan is ideal for installations where low noise levels, efficient airflow, and reliable long-term performance are required. Its compact design and acoustic insulation make it particularly suitable for ceiling voids, suspended ceilings, and other space-restricted ventilation applications.
| Weight | 4.95 kg |
|---|---|
| Dimensions | 643 × 274 × 327 mm |
