ECOAIR DESIGN T Soler & Palau quiet bathroom extractor fan with timer Ø100 mm
€181.75 Incl. VAT
Soler & Palau ECOAIR DESIGN T very quiet Ø100 mm centrifugal bathroom extractor fan with timer delivers continuous ventilation with adjustable constant airflow and Boost performance up to 65 m³/h. The energy-efficient DC motor, ultra-quiet operation and removable washable filter ensure reliable, energy-efficient ventilation for bathrooms, toilets and utility rooms.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments

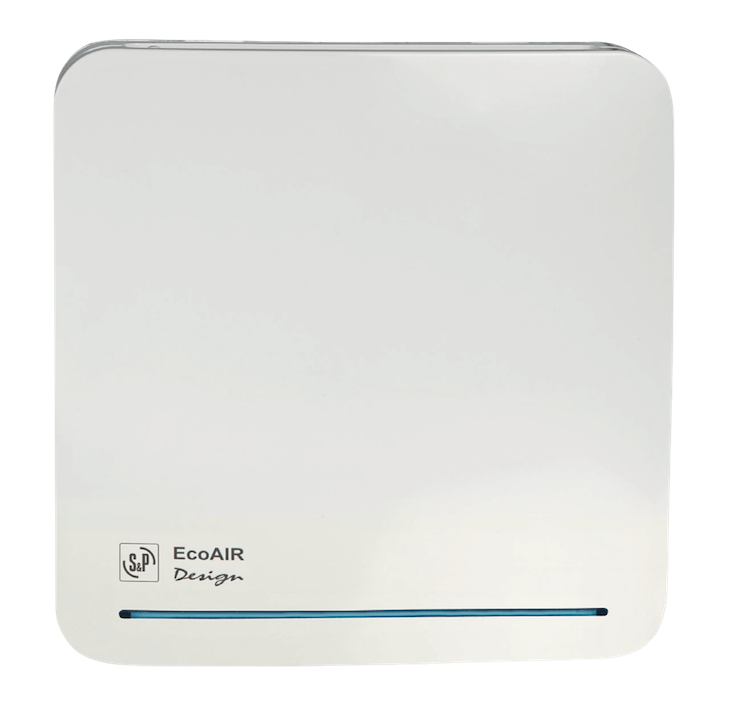

Soler & Palau ECOAIR DESIGN T Quiet Continuous Bathroom Extractor Fan
Soler & Palau ECOAIR DESIGN T is a very quiet and energy-efficient Ø100 mm bathroom extractor fan for continuous constant-volume ventilation with an adjustable timer and wired Boost function. Adjustable trickle airflow of 15, 22, 30, 36, 45 or 54 m³/h provides controlled background ventilation, while Boost increases airflow up to 65 m³/h when additional extraction is required.
The adjustable 1–30 minute overrun timer keeps Boost running after the external switch is turned off before returning to trickle ventilation. A high-efficiency DC motor, Silent-Elastic-Blocks and forward-curved centrifugal impeller minimise vibration and noise for quiet, reliable continuous operation.
MODEL FEATURES
KEY FEATURES & BENEFITS
- Designed for Ø100 mm ducting
- Continuous constant-volume ventilation
- Adjustable trickle airflow: 15, 22, 30, 36, 45 or 54 m³/h
- Wired Boost function up to 65 m³/h
- Adjustable overrun timer: 1–30 minutes
- Quiet, energy-efficient DC motor
- Silent-Elastic-Blocks reduce vibration and noise transmission
- Forward-curved centrifugal impeller for quiet operation
- Removable and washable plastic mesh inlet filter
- Interchangeable colour bars: blue, red, green and yellow

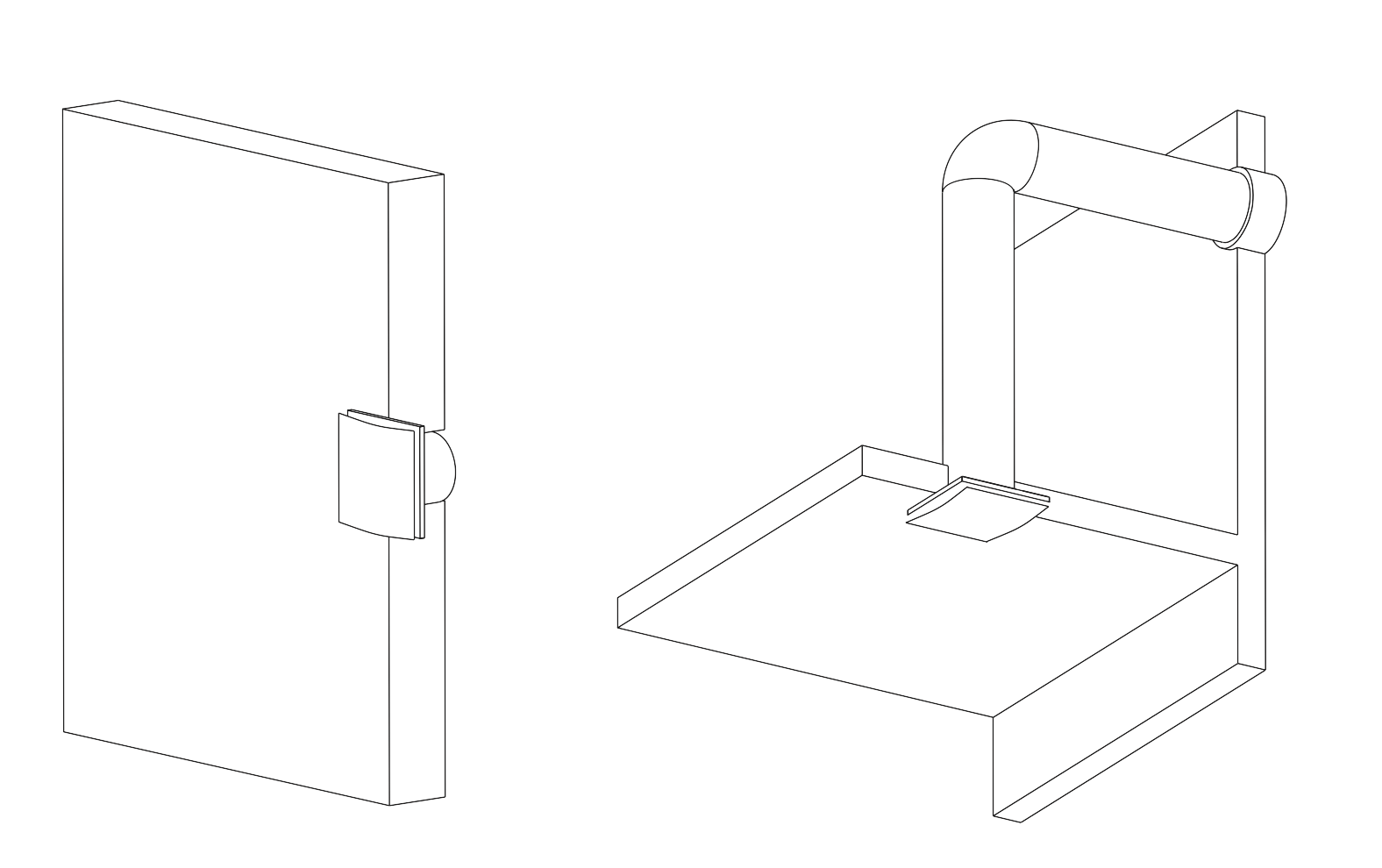

- Suitable for wall or ceiling installation
- Direct outdoor discharge or connection to an individual ducting system
TECHNICAL INFORMATION
REMOVABLE & WASHABLE FILTER
The inlet-side removable plastic mesh filter protects the fan from dust and dirt and can be easily washed during routine maintenance, helping maintain efficient airflow and reliable long-term performance.

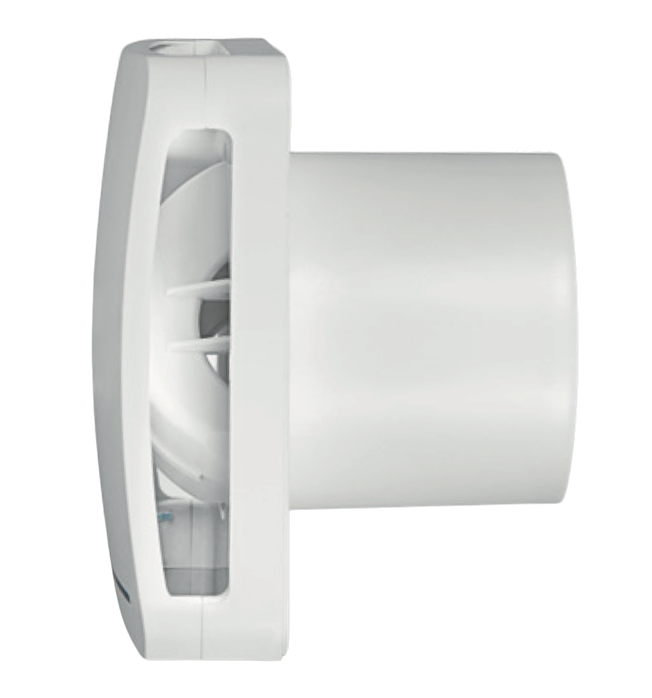

DIMENSIONS
Interchangeable colour bars. 4 colours to match the decor of the room (blue, red, green and Yellow).
APPLICATIONS
Ideal for continuous ventilation in bathrooms, WCs, shower rooms and utility rooms. ECOAIR DESIGN T helps control humidity, condensation, steam, stale air and unwanted odours, providing quiet and efficient air extraction for apartments, houses and other residential applications.
| Weight | 0.7 kg |
|---|---|
| Dimensions | 220 × 180 × 210 mm |
