ECOAIR DESIGN S Soler & Palau ultra quiet bathroom extracor fan for constantvolume Ø100 mm

Soler & Palau ECOAIR DESIGN S Ø100 mm domestic centrifugal extract fan for wall or ceiling installations, designed for constant volume continuously running operation with wired boost option, in utility rooms and bathrooms.

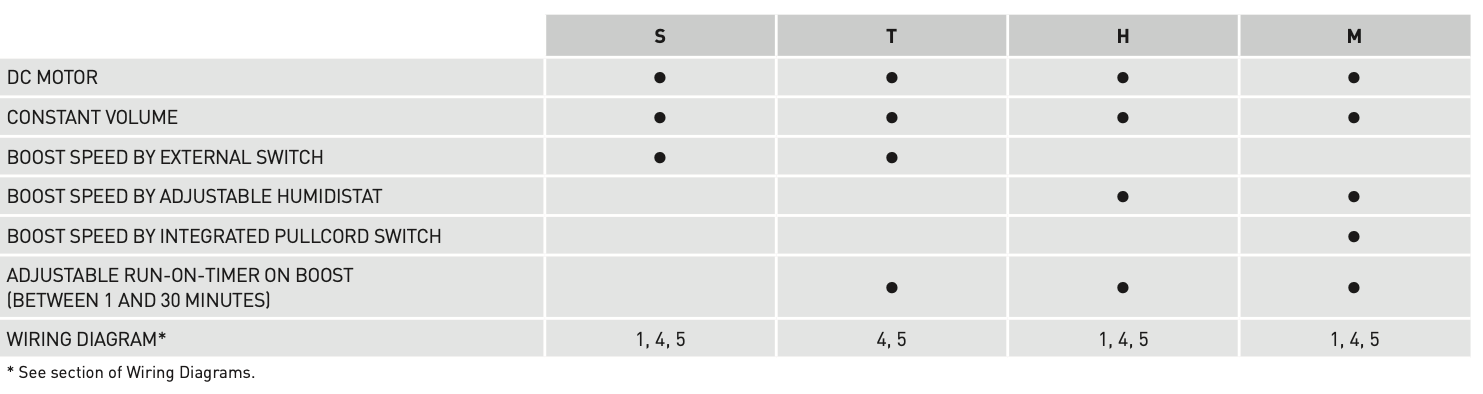

ECOAIR DESIGN FAN MODEL FEATURES

EcoAIR DESIGN S runs continuously on trickle setting and can be boosted by an external switch.

Trickle speed (constant airflow) setting within 15, 22, 30, 36, 45 or 54 m³/h with dip-switch on the PCB.

TECHNICAL INFORMATION

Fitted with DC motors mounted on silent elastic blocks, the fans deliver incredibly silent running and exceptional performance with ultra low power consumption.

They incorporate a removable and washable filter, mounted on the inlet side and made of plastic mesh.

Centrifugal forward curved impeller- Centrifugal forward curved impeller, with an extremely low sound level.
Silent-elastic-blocks – Motor mounted on “Silent-elastic-block” to prevent vibration and noise transmission.
Inlet side filter – Removable and washable filter, made of plastic mesh, to protect the fan from dirt.

Different styles with the colour bars – Interchangeable colour bars. 4 colours to match the decor of the room (blue, red, green and yellow).

DIMENSIONS

The ECOAIR DESIGN is suitable for wall or ceiling mounting and can either discharge directly to the outside or via an individual ducting system .

APPLICATIONS

Ideal for continuous ventilation in bathrooms, WCs, shower rooms and utility rooms. ECOAIR DESIGN S provides consistent background extraction to help control humidity, condensation, steam, stale air and unwanted odours, supporting improved indoor air quality in apartments, houses and other residential applications.
