ECOAIR DESIGN H Soler & Palau quiet bathroom extractor fan with humidity sensor and timer Ø100 mm

Soler & Palau ECOAIR DESIGN H very quiet Ø100 mm bathroom extractor fan with humidity sensor and timer, designed for constant volume continuously running operation with wired boost option, in utility rooms and bathrooms.

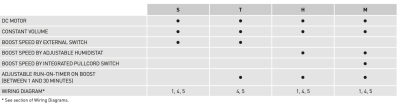

ECOAIR DESIGN MODEL FEATURES

ECOAIR DESIGN H fan with an electronic humidistat which can be adjusted from 60% to 90 % RH (relative humidity) and with a timer, adjustable between 1 and 30 minutes.

TECHNICAL INFORMATION

Trickle speed (constant airflow) setting within 15, 22, 30, 36, 45 or 54 m³/h with dip-switch on the PCB, boost up to 65 m³/h.

EcoAIR DESIGN H the boost operation is activated either by the internal humidistat or by an external switch both with timer.

Fitted with DC motors mounted on silent elastic blocks, the fan deliver incredibly silent running and exceptional performance with ultra low power consumption.

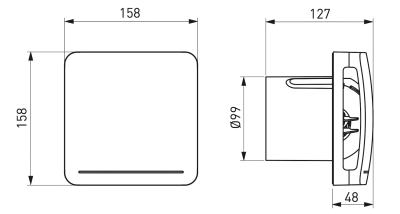

DIMENSIONS

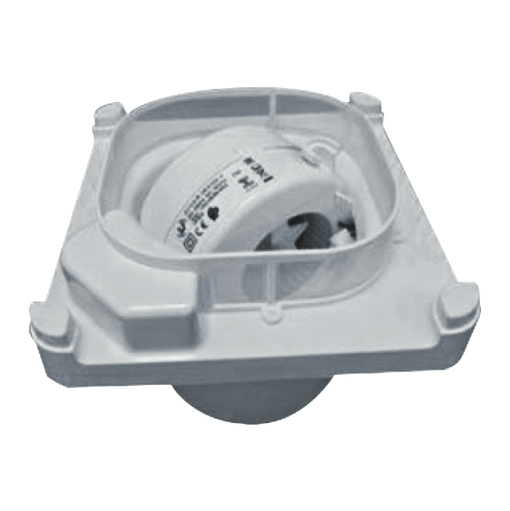

Incorporate a removable and washable filter, mounted on the inlet side and made of plastic mesh.

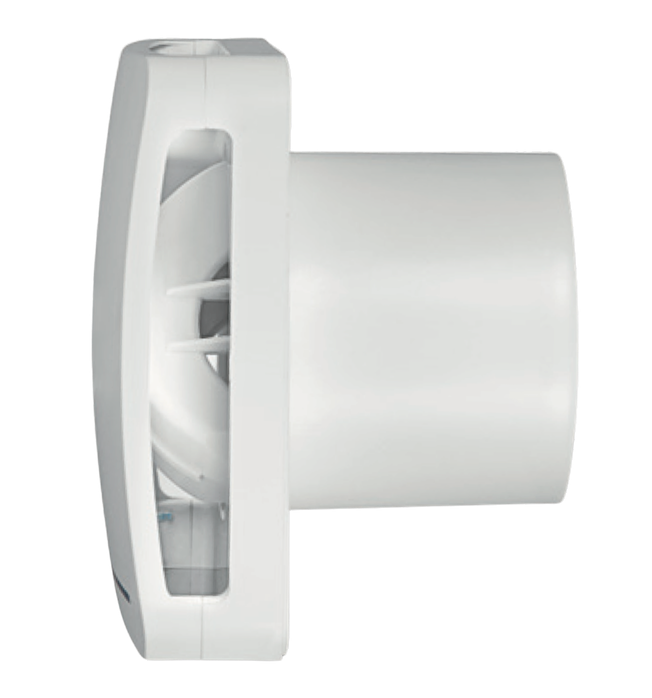

Centrifugal forward curved impeller- Centrifugal forward curved impeller, with an extremely low sound level.

Silent-elastic-blocks – Motor mounted on “Silent-elastic-block” to prevent vibration and noise transmission.

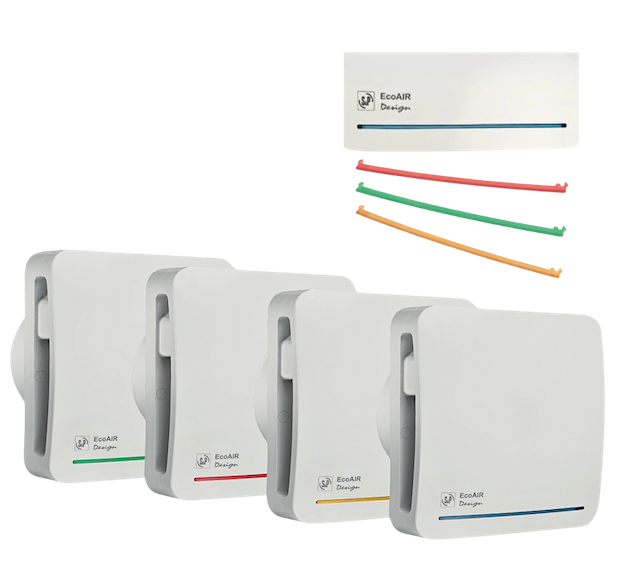

Interchangeable colour bars. 4 colours to match the decor of the room (blue, red, green and Yellow).

The ECOAIR DESIGN is suitable for wall or ceiling mounting and can either discharge directly to the outside or via an individual ducting system .
