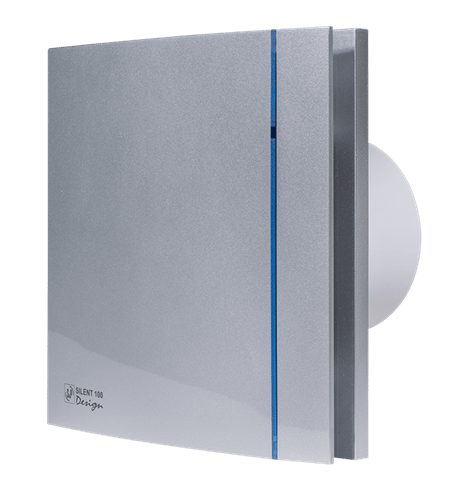

SILENT-100 CHZ DESIGN Silver Soler & Palau bathroom extractor fan with humidity sensor and timer Ø100mm

Soler & Palau SILENT-100 CHZ DESIGN SILVER Humidity Sensor Bathroom Extractor Fan With Timer

Designed for automatic moisture control, this ultra-quiet Ø100 mm bathroom extractor fan combines an adjustable humidity sensor (60–90% RH) with a 1–30 minute run-on timer. Delivering 85 m³/h airflow at only 26.5 dB(A), it provides quiet and effective extraction while the stylish silver finish complements modern bathroom interiors.

The humidity sensor automatically activates extraction when the room humidity rises above the selected level. A low-consumption 8 W ball-bearing motor mounted on Silent-Elastic-Blocks reduces vibration and noise transmission, while the automatic backdraft shutter helps prevent reverse airflow when the fan is not operating.

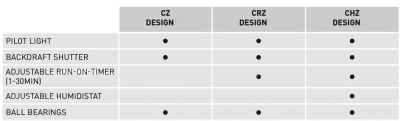

SILENT-100 DESIGN SILVER MODEL FEATURES

KEY FEATURES

• Designed for Ø100 mm circular ducting
• Durable ball-bearing motor
• Automatic backdraft damper helps prevent reverse airflow and limit heat loss
• Pilot light
• Adjustable humidity sensor: 60–90% RH
• Adjustable run-on timer: 1–30 minutes
• Automatic humidity-controlled extraction
• Ultra-quiet operation: 26.5 dB(A)
• Airflow rate: 85 m³/h
• Low power consumption: 8 W
• Silent-Elastic-Blocks minimise vibration and noise transmission
• Silver finish
• Injection-moulded plastic construction
• Suitable for wall or ceiling installation
• Direct outdoor discharge or connection to an individual ducting system
• Can be connected to a light switch for automatic operation with the room lighting or to a separate independent switch for manual control.
• Operating air temperature 0 to +40 °C

HUMIDITY SENSOR & TIMER

The adjustable electronic humidistat monitors room humidity within a 60–90% RH range and automatically activates the extractor when the selected humidity level is exceeded. The adjustable 1–30 minute timer provides continued extraction after activation conditions change, helping remove residual moisture and condensation.

The extractor fan operates via the light switch – when the humidity level in the room is lower than the selected level. After the light is switched off, the fan continues to run for the period selected on the timer.

TECHNICAL INFORMATION

DIMENSIONS

APPLICATION

Ideal for bathrooms, WCs, shower rooms and utility rooms where automatic moisture control is required. The SILENT-100 CHZ DESIGN SILVER helps control humidity, condensation, steam, stale air and unwanted odours, providing quiet and automatic bathroom ventilation with additional timer-controlled extraction.
