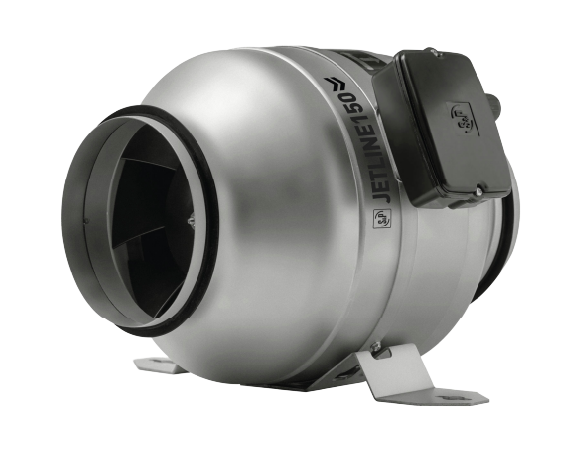

JETLINE-150 Soler & Palau quiet inline duct fan Ø150mm
€189.75 Incl. VAT
Soler & Palau JETLINE-150 quiet inline duct fan Ø150 mm is a high-performance centrifugal inline fan with airflow up to 717 m³/h and a 50 dB(A) noise level. Its low-profile galvanised steel casing provides a robust, space-saving solution for residential, commercial, and HVAC ventilation systems.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
The Soler & Palau JETLINE-150 low-profile inline duct fan is designed for 150 mm ventilation duct systems where high airflow capacity, low operating noise, and reliable air movement are essential. Its galvanised steel casing with a low-profile design allows installation in suspended ceilings and confined spaces without increasing the overall installation height.

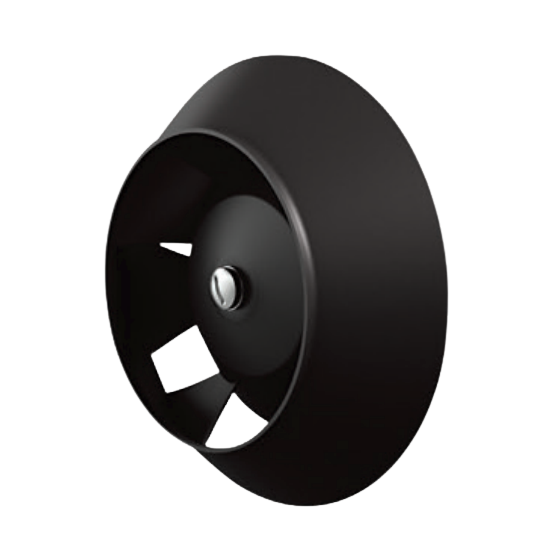

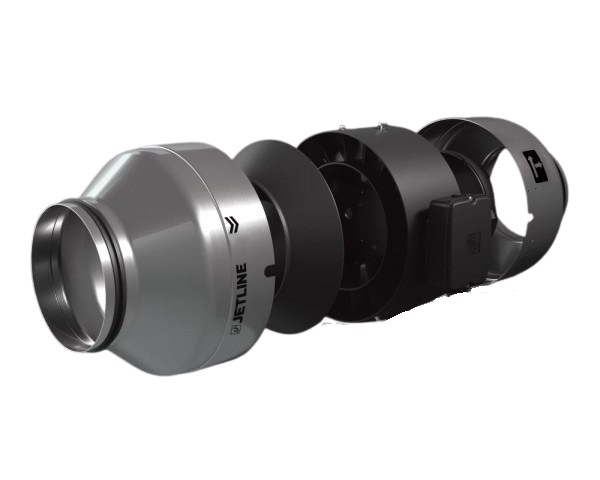

The fan incorporates an aerodynamically optimised impeller, guide vane, and outlet diffuser to maximise airflow while minimising turbulence and sound levels. Rubber-sealed duct connections and an airtight housing construction help reduce air leakage and improve the overall efficiency of the ventilation system.
KEY FEATURES
- Quiet 150 mm inline duct fan
- Airflow up to 717 m³/h
- Low noise level of 50 dB(A)
- Low-profile galvanised steel casing
- High aerodynamic performance
- Optimised impeller, guide vane and outlet diffuser
- Airtight housing construction to minimise air leakage
- Rubber-sealed duct connections for improved airtightness
- Silent-block motor mounting to reduce vibration and installation noise
- Built-in IP65 terminal box suitable for indoor and outdoor installation
- Heavy-duty mounting bracket with two installation positions

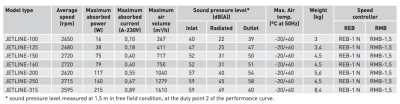

MOTOR & TECHNICAL INFORMATION
- Single-phase external rotor AC motor
- Voltage controllable speed
- Compatible with RMB-1.5 speed controller
- Thermal overload protection with manual reset
- 220–240 V / 50–60 Hz
- Protection rating: IP44 motor / IP65 terminal box
- Motor insulation: Class F
- Operating temperature: -20°C to +60°C
DIMENSIONS
CHARACTERISTICS
APPLICATIONS
Suitable for bathroom ventilation, kitchen extraction, commercial ventilation, office buildings, utility areas, technical rooms, and other 150 mm duct ventilation systems requiring high airflow, quiet operation, and dependable air extraction.

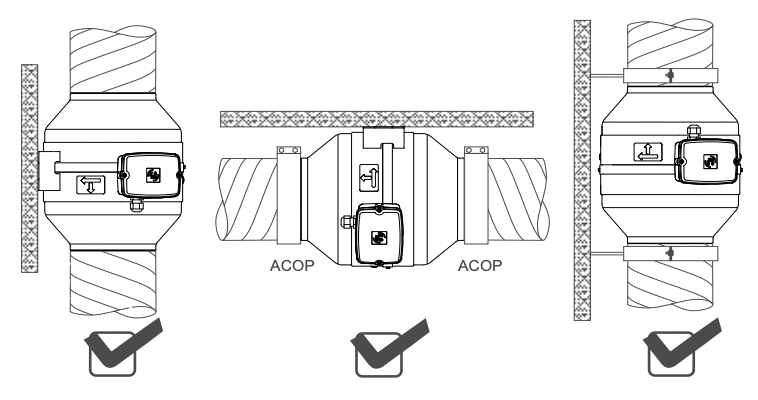

INSTALLATION POSITIONS
Fan can be installed in any position, providing maximum installation flexibility.

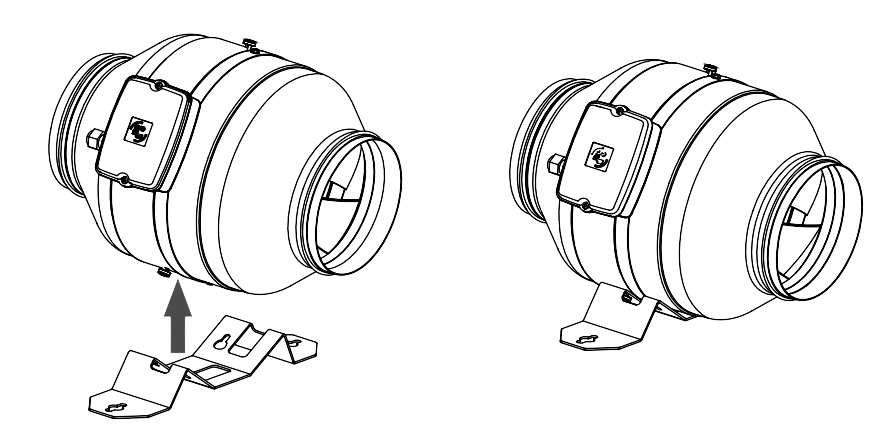

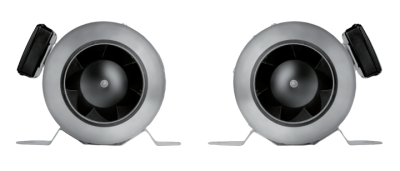

The Jetline fans can be mounted in two different positions by changing the position of the support’s anchoring.
| Weight | 5.4 kg |
|---|---|
| Dimensions | 365 × 297 × 350 mm |
