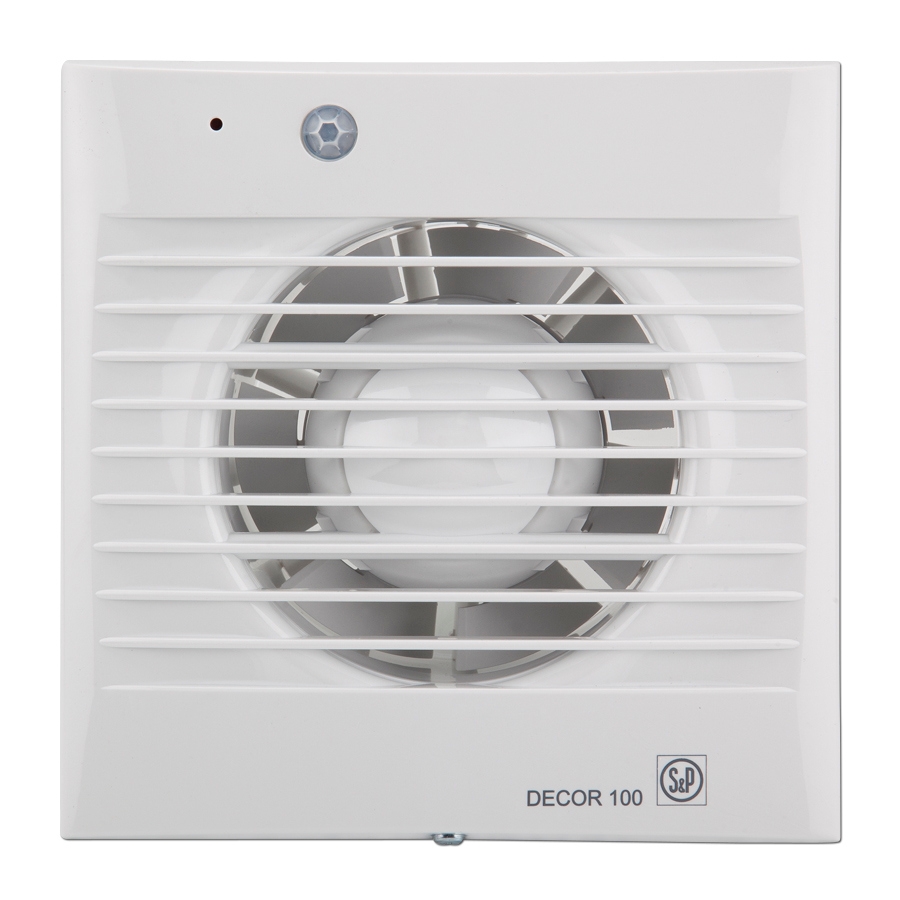

DECOR-100 CDZ Soler & Palau bathroom extractor fan with motion sensor and timer Ø100mm (ball bearings)

– The Soler & Palau DECOR-100 CDZ is a premium 100mm axial bathroom and WC extractor fan with timer and motion sensor designed for long-lasting, efficient ventilation.

– Built with a durable ball-bearing motor, this domestic extractor fan delivers quiet operation and a 95 m³/h airflow rate, making it ideal for moisture control in heavily used bathrooms.

– The integrated PIR (passive infra-red) sensor automatically activates the fan when movement is detected within up to 4 metres, while the adjustable timer (1–30 minutes) ensures continued extraction after use.

– Timer and delay settings are easily accessed on the PCB behind the slim front grille.

– The DECOR-100 CDZ includes a neon indicator light, an automatic backdraft damper to prevent reverse airflow and heat loss, Class II insulation and an IPX4 protection rating suitable for humid environments.

– Its single-phase 230V Class B motor features thermal overload protection and operates reliably at temperatures up to 40°C.

– With a sleek, low-profile grille and compatibility with both wall and ceiling installation, this extractor fan blends seamlessly into any bathroom interior.

– Manufactured in Spain, it offers a dependable, energy-efficient solution for modern homes.

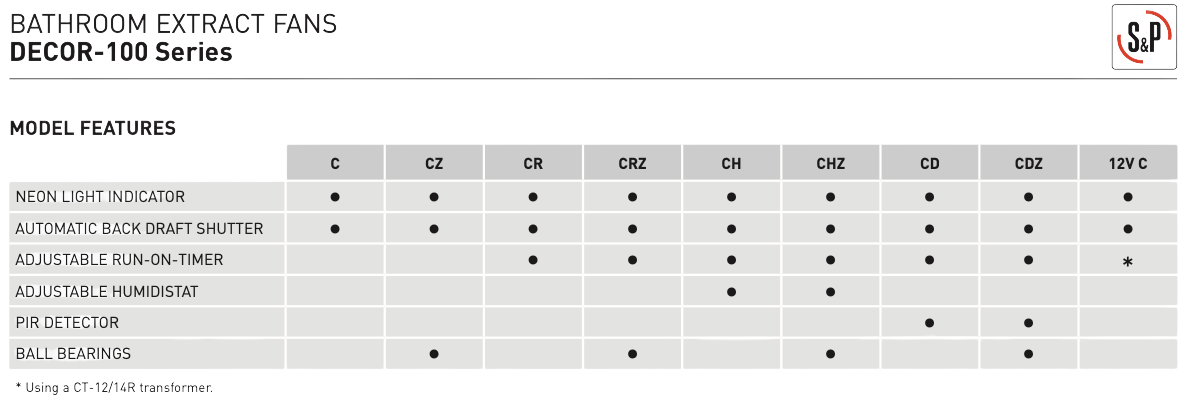

TECHNICAL INFORMATION:
Connection diameter Ø: 100 mm
Adjustable run-on-timer (1-30min)
Motion sensor
Ball-bearing motor

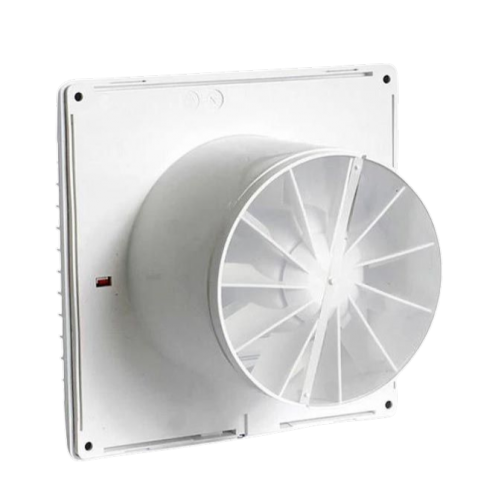

Automatic back draft shutter
Neon light indicator
Airflow rate: 95 m³/h
Sound level: 40 dB(A)
Power: 13 W
Speed: 2500 rpm
IPX4
