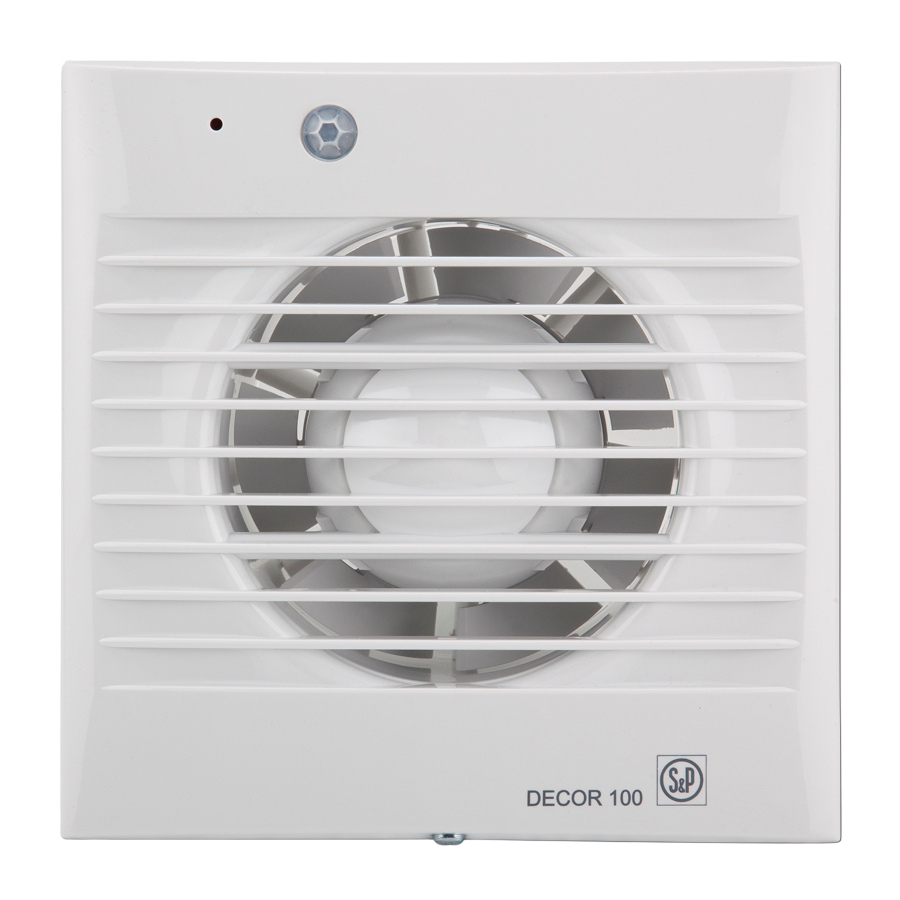

DECOR-100 CD Soler & Palau bathroom extractor fan with motion sensor and timer Ø100mm

– The Soler & Palau DECOR-100 CD is a high-performance 100mm axial bathroom and WC extractor fan with timer and motion sensor designed for automatic and energy-efficient ventilation.

– Equipped with a PIR motion sensor, the fan activates instantly when movement is detected within up to 4 metres, ensuring responsive air extraction in frequently used spaces.

– Its adjustable timer (1–30 minutes) keeps the fan operating after motion stops, with settings accessible on the PCB once the slim front grille is removed.

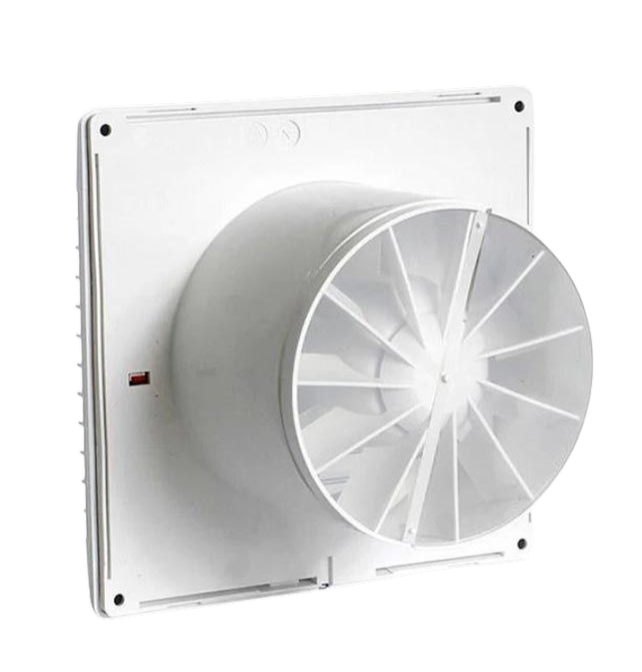

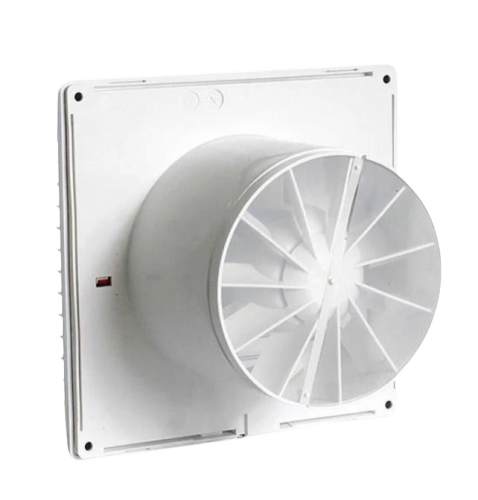

– Delivering a 95 m³/h airflow rate, the DECOR-100 CD also includes an automatic backdraft shutter to prevent reverse airflow and minimise heat loss when idle.

– Additional features include a neon indicator light, Class II insulation, an IPX4 protection rating and a durable plastic housing suitable for humid environments.

– The single-phase 230V Class B motor is equipped with thermal overload protection and is rated for operation from 0 to 40°C.

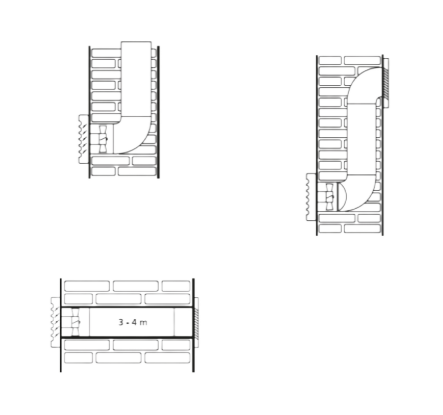

– With its sleek low-profile design and compatibility with wall or ceiling installation, the DECOR-100 CD offers an efficient, long-lasting ventilation solution for modern bathrooms.

– Made in Spain.

TECHNICAL INFORMATION:
Connection diameter Ø: 100 mm
Adjustable run-on-timer (1-30min)
Motion sensor (PIR)
Automatic back draft shutter
Neon light indicator
Airflow rate: 95 m³/h
Sound level: 40 dB(A)
Power: 13 W
Speed: 2500 rpm
230 V / 50 Hz
Class II
Class B
0 to +40 ºC
IPX4
