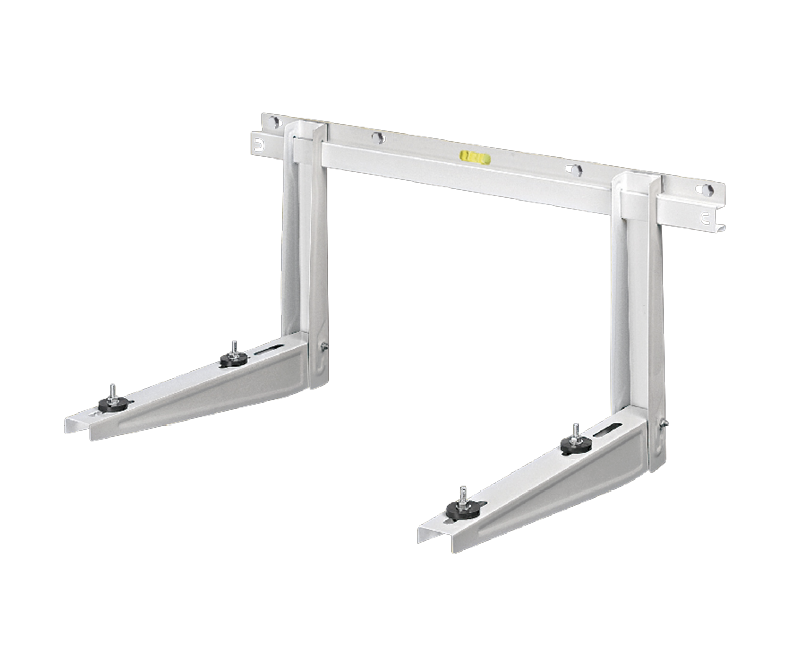

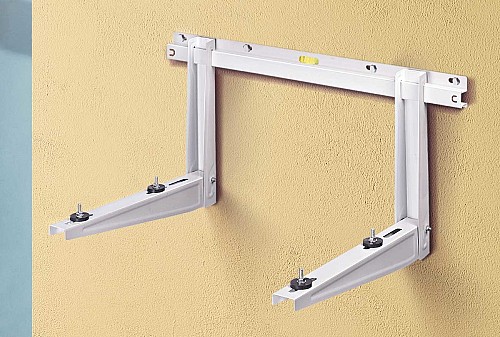

Rodigas MS257 sliding wall bracket for outdoor unit 550x800mm 140kg
€28.96 Incl. VAT
The Rodigas MS257 sliding wall bracket is a sturdy mounting solution for air conditioner and heat pump outdoor units, designed for reliable wall installation. Made from electro-galvanized steel with a white finish, it offers durability and corrosion resistance for outdoor environments. The bracket supports up to 140 kg and includes a built-in level for precise wall bar alignment and two adjustable polypropylene rubber feet to improve stability and reduce vibration. With dimensions 800 mm width, 550 mm depth, and 375 mm height, it provides stable support for a wide range of AC outdoor units.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments

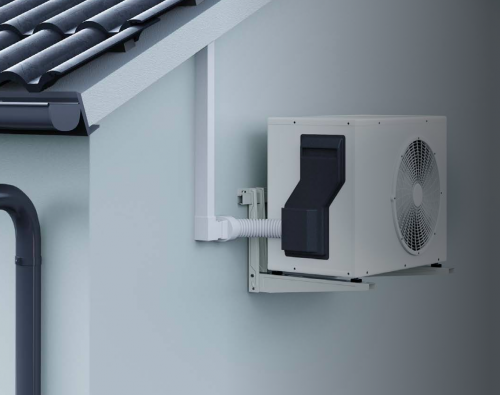

– The Rodigas MS257 sliding wall bracket is designed for secure mounting of air conditioner outdoor units on exterior walls, providing strong and stable support for HVAC installations.
– Made from electro-galvanized steel plate, the bracket offers durability and corrosion resistance. The white finish ( RAL 9002 ) ensures a clean appearance suitable for most building exteriors.
– The bracket features a sliding rail design for easier positioning and installation of the outdoor unit.
– Equipped with two adjustable polypropylene rubber feet, it helps reduce vibration and improve stability during operation.
– A built-in level allows precise alignment of the wall bar, making installation faster and more accurate.
Key Features
– Sliding wall bracket for AC outdoor units

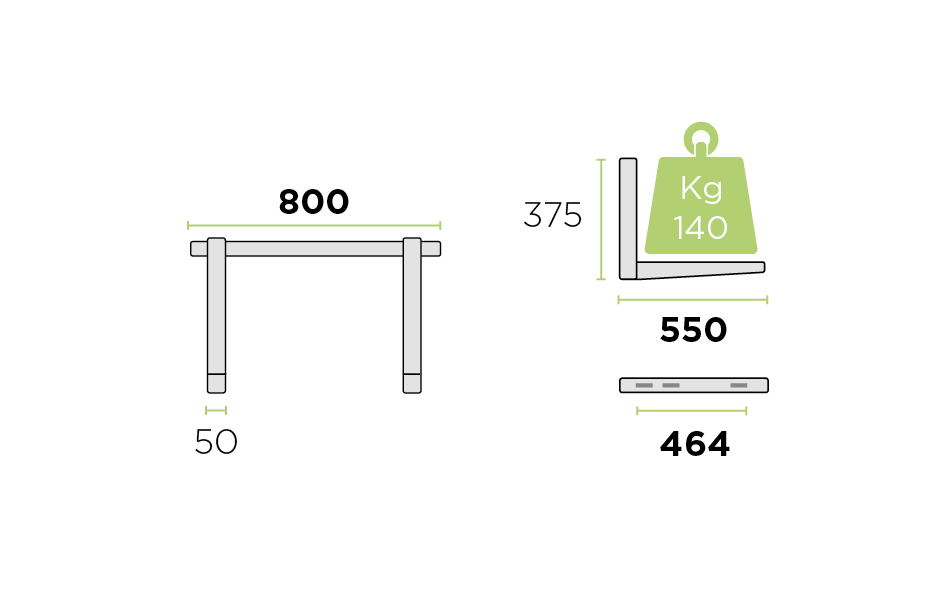

– Dimensions:
Width: 800 mm
Depth: 550 mm
Height: 375 mm
– Maximum load capacity: up to 140 kg
– Material: Electro-galvanized steel plate
– Colour: White (RAL 9002)
– 2 adjustable polypropylene rubber feet for vibration reduction
– Built-in level for easy alignment
– High-strength screws: 2 M6 × 70 (8.8)
– Made in Italy.
| Weight | 4.2 kg |
|---|---|
| Dimensions | 800 × 95 × 90 mm |
