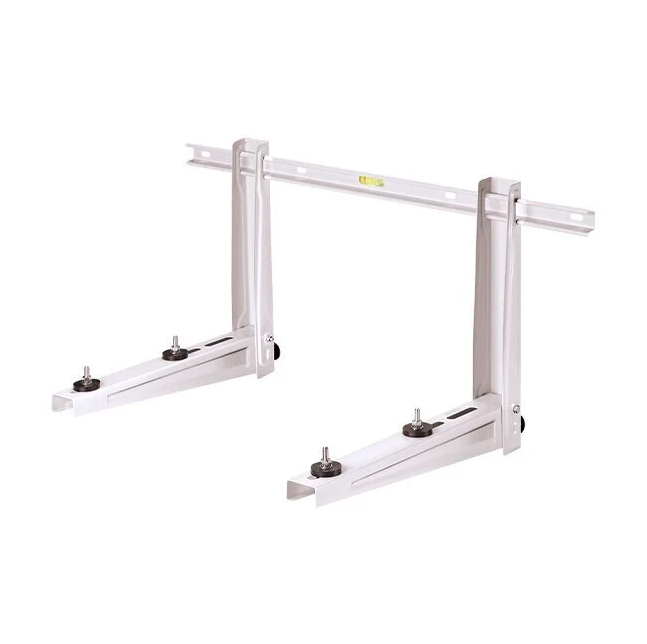

Rodigas MS 235 wall bracket for air conditioner outdoor unit 465×800 140kg
€23.35 Incl. VAT
Rodigas MS 235 outdoor unit bracket are durable and reliable mounts that ensure a secure and stable installation of your air conditioner’s outdoor unit. The sliding bracket is specifically designed for air conditioning and heat pumps systems. These wall mounts are made from high-quality electro-galvanized steel, offering strength and long-lasting performance. Installation is simple and convenient.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Rodigas MS 235 sliding bracket is specially designed for air conditioning and heat pump systems. The bracket is made from high-quality electro-galvanized steel plate, ensuring strength and long-lasting performance, UV resistant. Rodigas MS 235 brackets are supplied with all necessary accessories for mounting and securing the outdoor unit, making the installation process simpler and more convenient.
Technical information:
Width (mm): 800
Depth (mm): 465
Height (mm): 375
Load capacity (kg): 140
Material: Electro-galvanized steel plate
Color: White (RAL 9002)
Treatment: Painting epoxy resins in polyester
Joint: 2 high resistant screws M6×70 8.8
Adjustment: 2 adjustable gummy polypropylene feet
Equipped with a level to adjust the wall bar
The Italian manufacturer Rodigas is certified by internationally recognized institutions and guarantees the highest product quality. Since 1990, the company has specialized in the industrial production of brackets and accessories for air conditioning systems. Rodigas products are engineered to withstand loads three to five times greater than the actual operational weight.
| Weight | 3.4 kg |
|---|---|
| Dimensions | 820 × 95 × 90 mm |
