3/4″ Insulated Copper Pipe for Air Conditioners ISOCLIMA 25m
€357.49 Incl. VAT
ISOCLIMA ISOPOLAR 3/4″ (19.05 mm) insulated copper pipe for air conditioners and heat pumps. Suitable for R32, R410A and R407C refrigerants in split and VRV systems. Flexible pre-insulated copper tubing provides reliable refrigerant piping while high resistance to water vapour diffusion helps prevent surface condensation. 25m roll.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments

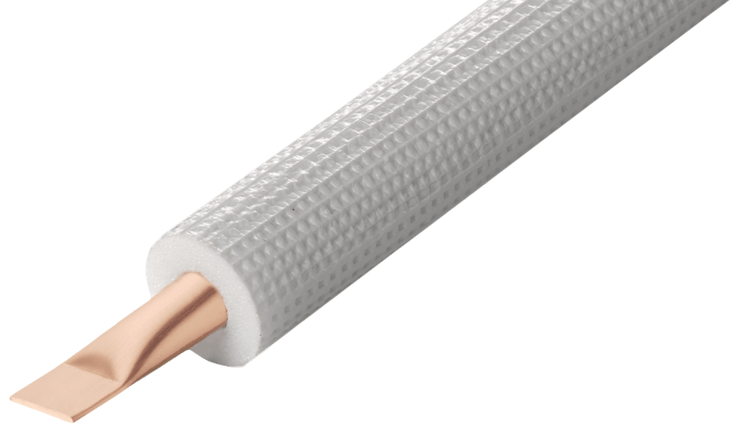

ISOCLIMA ISOPOLAR 3/4″ Insulated Copper Pipe for Air Conditioners 25 m
3/4″ pre-insulated copper tubing for for air conditioners and heat pumps is designed for professional refrigerant line installations in split and VRV systems. Suitable for R32, R410A and R407C refrigerants, providing a flexible pre-insulated solution for HVAC and refrigeration applications.
Manufactured from CU-DHP copper alloy, the refrigerant copper pipe has a 19.05 mm outside diameter and 1 mm wall thickness. The copper tubing complies with EN 12735-1:2020 for round copper tubes used in air-conditioning and refrigeration systems and has a minimum copper content of 99.9%.
Protected by 10 mm closed-cell polyethylene foam insulation with high resistance to water vapour diffusion. This helps prevent condensation on the pipe surface when refrigerant temperatures are below ambient temperature. An embossed white PE-LD outer film provides additional mechanical protection, while the insulation is non-toxic, odourless and CFC-free.
KEY FEATURES
- Copper pipe with insulation for air conditioners and heat pumps
- Pipe size: 3/4″ (19.05 mm)
- Copper wall thickness: 1 mm
- Length: 25 m
- Insulation thickness: 10 mm
- Total diameter with insulation: 39.05 mm
- Suitable for R32, R410A and R407C refrigerants
- Nominal working pressure: 5.89 MPa
- Nominal burst pressure: 23.55 MPa
- Operating temperature range: −80 °C to +98 °C
- Flexible closed-cell polyethylene foam insulation
- High resistance to water vapour diffusion
- Helps prevent surface condensation
- Fire reaction class: BL-s1,d0
- Embossed white PE-LD protective outer film
- Non-toxic, odourless and CFC-free insulation
APPLICATIONS
Designed for air conditioners, heat pumps, split and VRV systems requiring insulated copper refrigerant piping. Suitable for transporting R32, R410A and R407C refrigerants in professional air conditioning, refrigeration and HVAC installations.
ISOCLIMA ISOPOLAR Technical Data Sheet
| Weight | 12.90 kg |
|---|---|
| Dimensions | 790 × 790 × 130 mm |
| Package Weight (kg) | 12.90 |
Related products
1/2″ Insulated Copper Pipe for Air Conditioners ISOCLIMA 25m
ISOCLIMA ISOPOLAR 1/2″ (12.70 mm) insulated copper pipe for air conditioners and heat pumps 25 m. Suitable for R32, R410A and R407C refrigerants in split and VRV systems. Flexible pre-insulated copper tubing supports reliable refrigerant piping while its high resistance to water vapour diffusion helps reduce surface condensation.

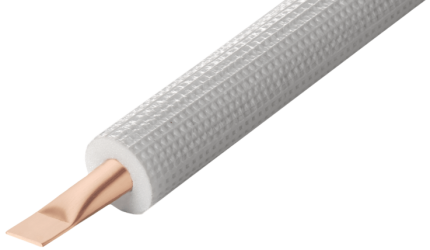

1/2″ Insulated Copper Pipe for Air Conditioners ISOCLIMA 50m
