SD-77-I INABA DENKO SLIMDUCT SD Lineset Cover 1 m (ivory)
€8.25 Incl. VAT
INABA DENKO SLIMDUCT SD-77-I decorative lineset cover 1m for neatly routing and protecting air conditioner and heat pump refrigerant pipes, drain lines and cables. The ivory straight duct is part of the modular SLIMDUCT SD trunking system, with UV-resistant PVC construction suitable for indoor and outdoor use.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
INABA DENKO SLIMDUCT SD-77-I Lineset Cover 1 m Ivory

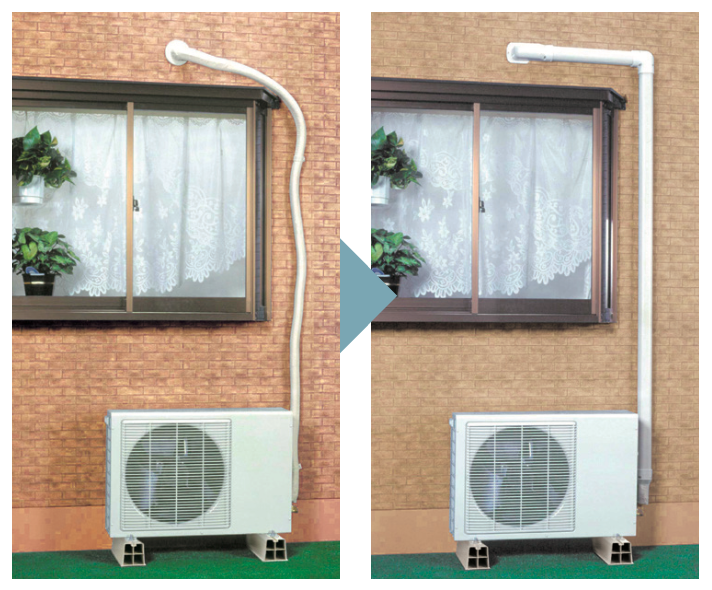

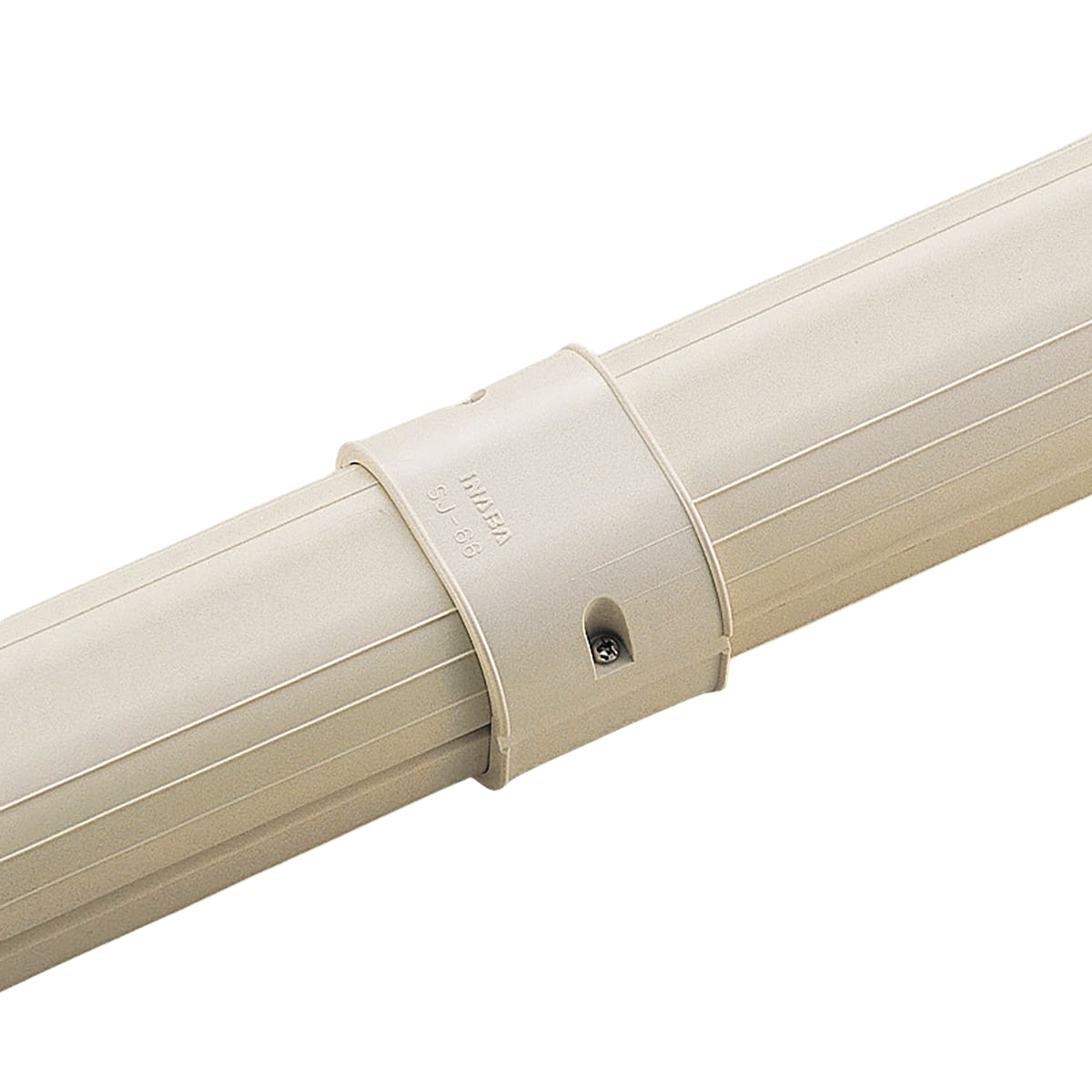

INABA DENKO SLIMDUCT SD-77-I straight duct is designed to create a neat, protected route for air conditioning and heat pump pipework. This 1 m straight duct conceals refrigerant lines, condensate drainage and electrical cables, providing a clean finished appearance while protecting exposed HVAC services. Multiple lineset cover sections can be joined with the SJ-77-I duct connector for longer installation runs.
As part of the SLIMDUCT SD trunking system, the straight section can be combined with matching fittings and accessories to create a continuous route around walls, corners and other installation obstacles. The shorter 1 m length is particularly practical for smaller runs and installations where a full 2 m section is not required.
Made from durable, UV-resistant PVC, the ivory decorative lineset cover is suitable for both indoor and outdoor installations. Its understated finish helps integrate exposed air conditioning pipework into façades and interior spaces while maintaining easy access to the installation route.

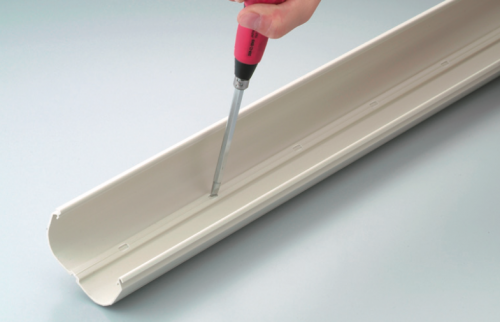

Installation is simplified by punch-out holes positioned every 100 mm, while concealed screw fixing keeps visible fasteners to a minimum. The duct can be mounted on walls, ceilings or floors and operates within a temperature range of −20 °C to +60 °C.
KEY FEATURES
- 1 m lineset cover for air conditioning and heat pump installations
- Straight duct for concealing and protecting HVAC service lines
- Punch-out fixing holes every 100 mm
- Extendable for longer runs using the SJ-77-I duct connector.
- Concealed screw installation
- Part of the SLIMDUCT SD decorative trunking system
- Durable UV-resistant PVC
- Suitable for indoor and outdoor use
- Ivory finish: RAL 7044
- Suitable for wall, ceiling and floor mounting
- Operating temperature: −20 °C to +60 °C
- Compatible with SLIMDUCT SD fittings and accessories
- Made in Thailand
DIMENSIONS
APPLICATIONS

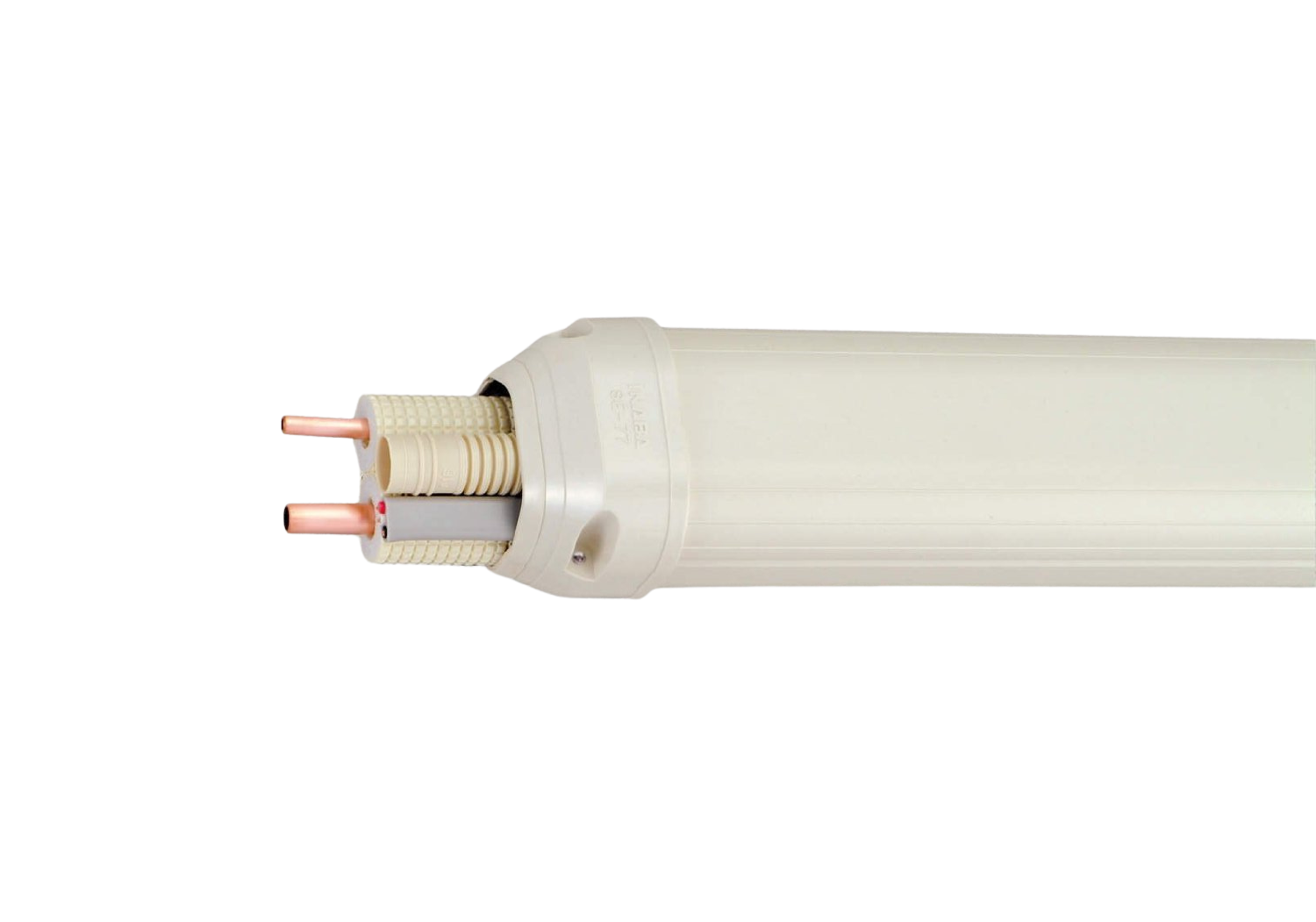

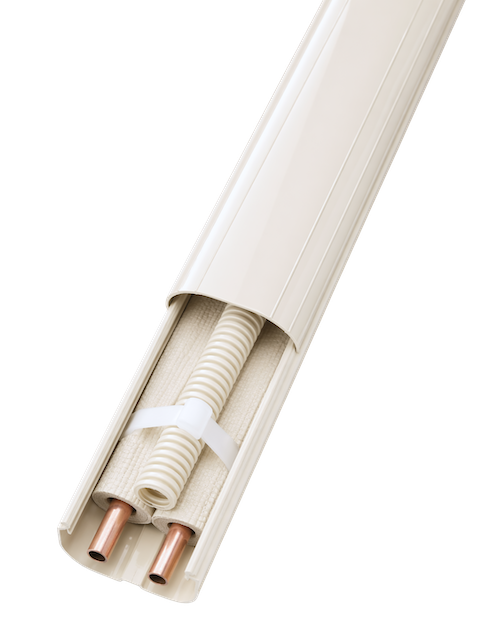

The SD-77-I straight duct provides protective and decorative trunking for exposed HVAC installations. It can be used to conceal:
- Air conditioner and heat pump refrigerant lines
- Insulated copper pipes
- Condensate drain lines
- Electrical wiring and cables
- Other compatible HVAC service lines
The 1 m decorative lineset cover is especially useful for shorter pipe runs, finishing sections and installations where greater flexibility in duct length is required. Combined with compatible SLIMDUCT SD fittings, it forms part of a complete air conditioner trunking system for residential and commercial installations.
DOCUMENTS
SLIMDUCT SD Catalogue
| Weight | 0.7 kg |
|---|---|
| Dimensions | 1010 × 67 × 80 mm |
