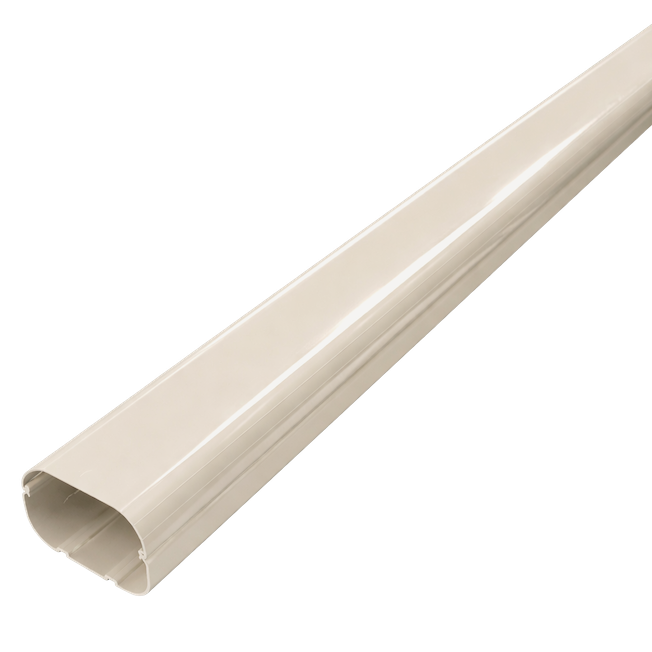

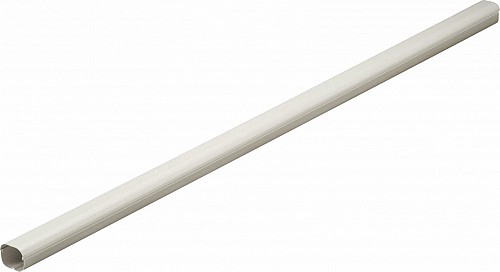

SD-100-I INABA DENKO SLIMDUCT SD Lineset Cover 2 m (ivory)

INABA DENKO SLIMDUCT Ivory SD-100-I Lineset Cover 2 m

The INABA DENKO SLIMDUCT SD-100-I straight duct provides a larger 100 × 70 mm profile for routing and covering air conditioning and heat pump service lines. Its 2 m length creates a continuous protective route for insulated refrigerant pipes, condensate drainage and electrical wiring while keeping exposed HVAC services neatly concealed.

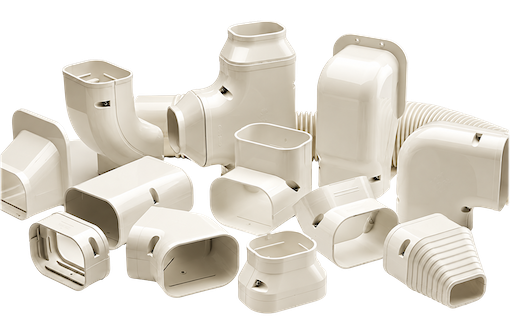

As part of the modular SLIMDUCT SD trunking system, the straight duct can be combined with matching couplers, elbows and other fittings to create a complete pipe covering route.

The ivory decorative lineset cover provides a clean finish for residential and commercial HVAC installations. Its RAL 7044 colour offers a neutral appearance suitable for integrating exposed air conditioning pipework with interior and exterior building surfaces.

CLEAN AND PROFESSIONAL INSTALLATION

Creates a clean, uniform and professional finish by keeping exposed HVAC lines neatly organised and protected. The enclosed installation improves the overall appearance while helping shield piping and wiring from weather exposure, UV radiation and accidental damage.

KEY FEATURES

• Ivory decorative lineset cover for air conditioners and heat pumps
• W × H: 100 × 70 mm
• Length: 2 m
• Straight decorative trunking for concealing and protecting HVAC service lines
• Provides a neat protective cover for refrigerant pipes, condensate drain lines and electrical wiring
• Made from durable UV-resistant PVC
• Suitable for indoor and outdoor installation
• Colour: Ivory (RAL 7044)
• Punch-out mounting holes every 100 mm

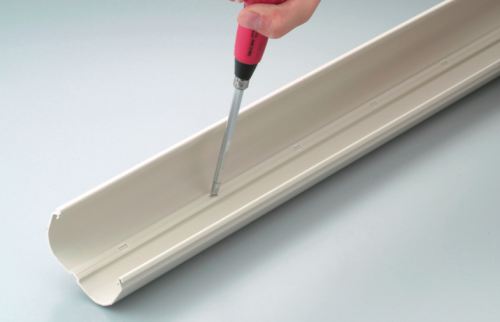

• Concealed screw fixing for a clean finished appearance
• Suitable for wall, ceiling and floor mounting
• Operating temperature: −20 °C to +60 °C
• Integrates with the INABA DENKO SLIMDUCT SD decorative trunking system
• Compatible with matching SLIMDUCT SD-100 fittings and accessories
• Extendable for longer refrigerant lineset runs using the matching SJ-100 ivory duct coupler

DIMENSIONS

PIPE CAPACITY

SLIMDUCT SD-100 for insulated copper pipes with 10 × 10 mm insulation:

1/4″ × 3/8″ — up to 2 sets
1/4″ × 1/2″ — 1 set
1/4″ × 5/8″ — 1 set
3/8″ × 5/8″ — 1 set
3/8″ × 3/4″ — 1 set
3/8″ × 7/8″ — 1 set

FITTINGS WITH ANTI-SLIP PIN

Selected SLIMDUCT SD fittings feature an anti-slip pin that securely holds the cover in position, helping prevent unwanted movement or sliding after installation.

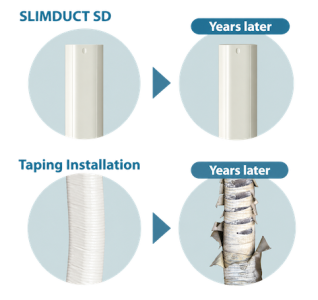

SLIMDUCT SD VS TAPING – LONG-TERM PROTECTION

SLIMDUCT SD protects refrigerant pipes, insulation, drain hoses and cables from UV exposure, rain and weather conditions, helping the installation remain clean, protected and professional-looking for years.

With taping installation, prolonged exposure to sunlight and weather can cause the wrapping to deteriorate, discolour, crack and peel, leaving the pipework and insulation increasingly exposed.

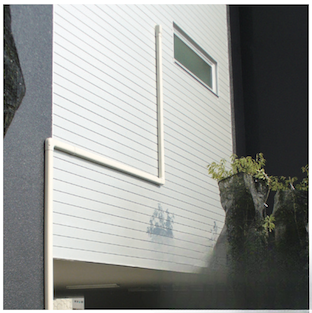

APPLICATIONS

The SD-100-I decorative lineset cover is suitable for air conditioning and heat pump installations requiring more internal space for insulated refrigerant pipework and associated services. It provides a protective and organised route for insulated copper pipes, condensate drain lines, electrical wiring and other compatible HVAC services.

Its 2 m straight duct format is particularly practical for longer pipe runs, while matching SLIMDUCT SD-100 fittings allow the route to continue around corners and changes of direction. Together, the components form a modular decorative trunking system for residential and commercial HVAC installations.

5 COLOUR VARIETIES

• White RAL 9003
• Ivory RAL 7044
• Anthracite Grey RAL 7016
• Brown RAL 6014
• Black RAL 9011
