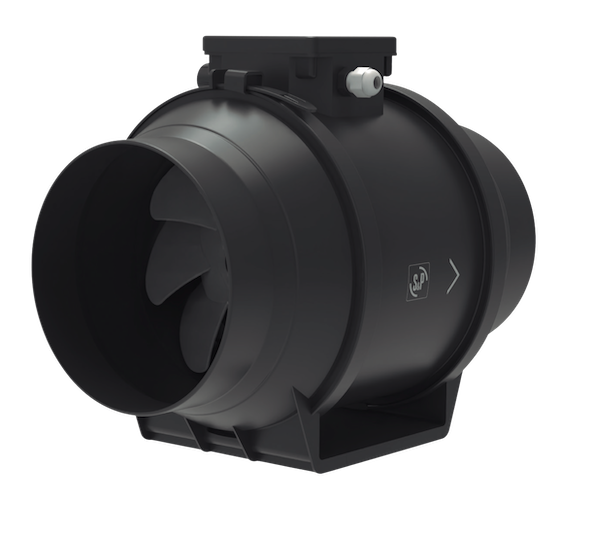

TD-150 P ECOWATT Soler & Palau mixed flow inline duct fan Ø150 mm (black)
€202.95 Incl. VAT
Soler & Palau TD-150 P ECOWATT mixed flow inline duct fan Ø150mm with an energy-efficient EC motor, designed for quiet, high-performance ventilation. Delivering airflow up to 571 m³/h with low noise levels from just 45 dB(A), this 150mm inline ventilation fan features 4-speed control, a compact low-profile design, and easy maintenance, making it ideal for residential, office, and commercial ventilation systems.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Soler & Palau TD-150 P ECOWATT quiet mixed flow inline duct fan with 4-speed EC motor
The Soler & Palau TD-150 P ECOWATT is a Ø150mm mixed flow inline duct fan with an energy-efficient EC motor, designed for residential, office, and commercial ventilation systems. Delivering airflow up to 571 m³/h with low noise levels from just 45 dB(A), this 150mm inline duct fan provides powerful, energy-efficient ventilation for continuous operation.

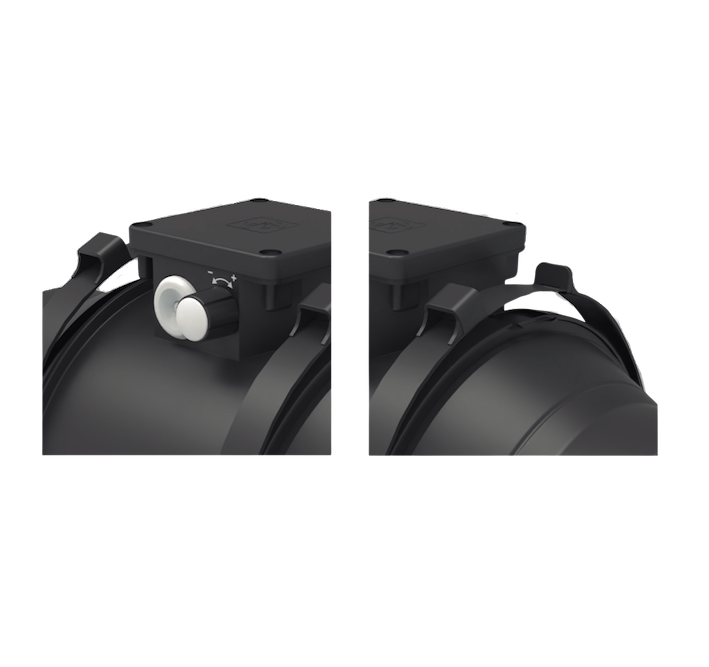

Its compact low-profile black housing offers a modern, discreet appearance while making installation easy in suspended ceilings and other confined spaces. The integrated 4-speed EC motor can be adjusted using the built-in potentiometer or an external 0–10 V control signal, providing precise airflow control for different ventilation requirements. The fan is also compatible with REB-ECOWATT, AIRSENS, and CONTROL ECOWATT BASIC speed controllers.

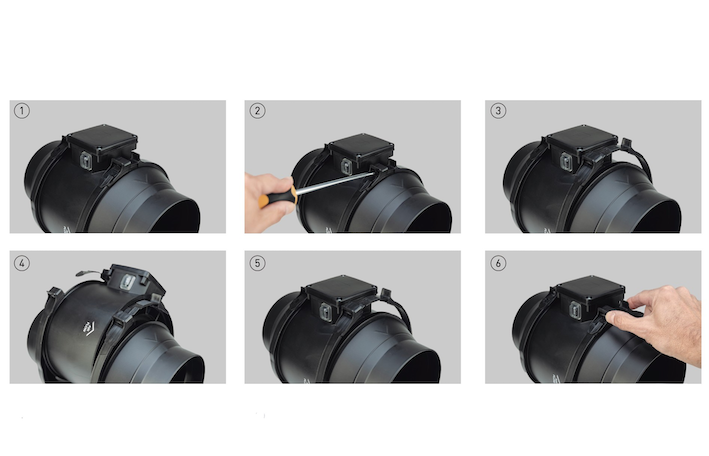

Built for long-term reliability, the fan features permanently lubricated ball bearings, thermal overload protection with manual reset, an IP44 protection rating, and a removable motor and impeller assembly that allows fast servicing without disconnecting the ductwork.
KEY FEATURES
- Ø150mm mixed flow inline duct fan
- Energy-efficient brushless EC motor
- Airflow up to 571 m³/h
- Quiet operation from 45 dB(A)
- 4-speed motor with built-in potentiometer
- External 0–10 V speed control
- Compatible with REB-ECOWATT, AIRSENS, and CONTROL ECOWATT BASIC controllers
- Compact low-profile black housing
- Permanently lubricated ball bearing motor
- Removable motor and impeller assembly for easy maintenance
- Thermal overload protection with manual reset
- IP44 protection rating
- Class II insulation
- 230V ±10%, 50/60Hz
- Manufactured in Spain
TECHNICAL INFORMATION
APPLICATION
Ideal for residential homes, apartments, offices, retail premises, restaurants, hotels, utility rooms, and commercial ventilation systems. This 150mm mixed flow inline duct fan is designed for continuous ventilation where quiet operation, low energy consumption, and reliable airflow are essential. Its compact low-profile design makes it particularly suitable for suspended ceilings and installations with limited space while providing easy access for future maintenance.
DIMENSIONS
| Weight | 2.5 kg |
|---|---|
| Dimensions | 295 × 265 × 385 mm |
