HXM-350 Soler & Palau plate mounted axial flow fan Ø300mm
€290.96 Incl. VAT
The Soler & Palau HXM-350 plate mounted axial flow fan Ø350 mm with adjustable speed control. It is equipped with ball bearings and a motor with thermal protection. The unit is manufactured from pressed galvanised steel and protected against corrosion. The fan delivers an airflow of 1,680 m³/h while operating at 51 dB(A). It includes an black aluminium sheet impeller and a steel finger-proof guard as standard.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
– The Soler & Palau HXM-350 plate mounted axial flow fan with 350 mm connection diameter.

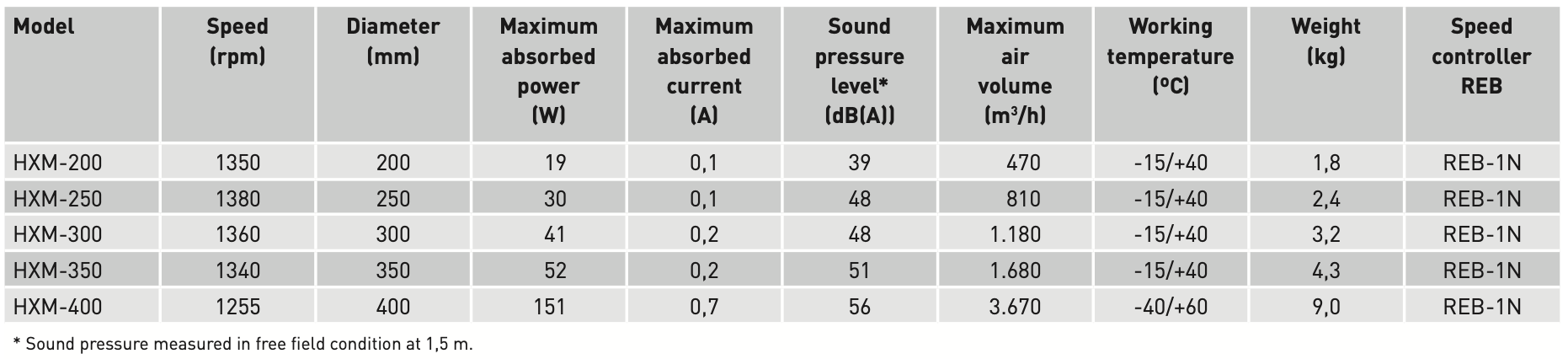

– Delivers reliable ventilation with an airflow of 1,680 m³/h and operating at 51 dB(A), it ensures quiet and efficient performance.
– The casing is made of pressed galvanised steel with a ivory epoxy-polyester coating for corrosion protection.
– It features an aluminium impeller with black polyester finish and includes a steel finger-proof guard mounted on the inlet side as standard.
– With a low power consumption of 52 W, the fan offers energy-efficient operation.
– It is equipped with a single-phase 220–240V, 50/60Hz motor featuring built-in thermal protection for safe and reliable performance
– The motor is speed controllable via the REB-1N single-phase speed controller (not included).
– Rated IP44, Class B insulation, it comes with a 50 cm flexible cable for connection to the electrical supplies and ball bearings greased for life.
– Standard configuration: Form (A) – motor over impeller.
– Operating temperature: -15°C to +40°C.
– Made in Spain.
Mounting accessories:
– PER – 355 W (back draft plastic shutter)
– PER – 355 CR (back draft aluminium shutter)
Electrical accessories:
REB-1N (electronic, single phase speed controller)
| Weight | 43 kg |
|---|---|

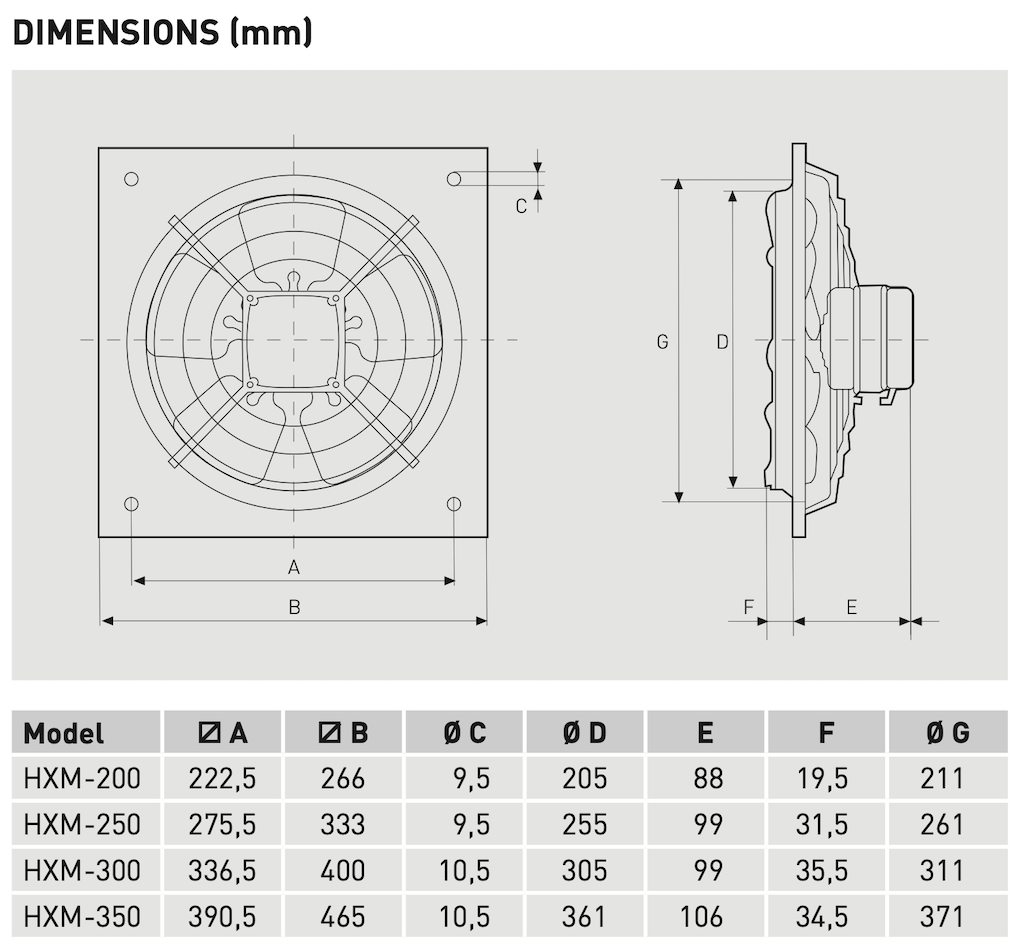

| Dimensions | 430 × 170 × 430 mm |
