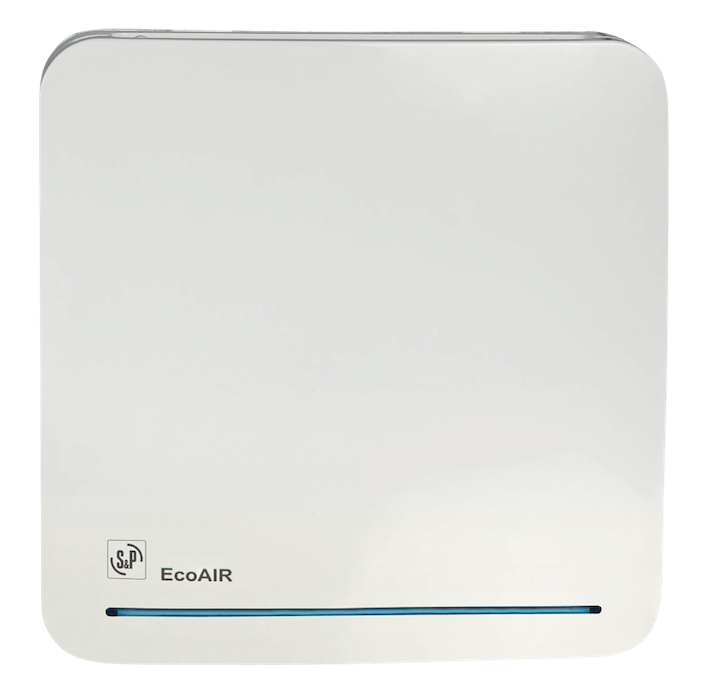

ECOAIR TLC Soler & Palau quiet bathroom extractor fan with timer Ø100 mm
€154.40 Incl. VAT
Soler & Palau ECOAIR TLC quiet Ø100 mm centrifugal bathroom extractor fan with adjustable timer for continuous or intermittent ventilation. Features an energy-efficient EC motor, adjustable airflow, washable inlet filter and backdraft shutter, with quiet operation up to 32 dB(A) for reliable extraction in bathrooms, WCs and shower rooms.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments
Soler & Palau ECOAIR TLC Quiet Bathroom Exhaust Fan with EC Motor and Run-On Timer
The Soler & Palau ECOAIR TLC is a high-performance 100 mm centrifugal bathroom exhaust fan, engineered for continuous or intermittent bathroom ventilation with an integrated adjustable run-on timer. Powered by an energy-efficient EC motor, this ultra-quiet extractor fan delivers reliable airflow, exceptionally low energy consumption, and automatic delayed shut-off, making it ideal for maintaining a fresh, moisture-free indoor environment in modern homes.

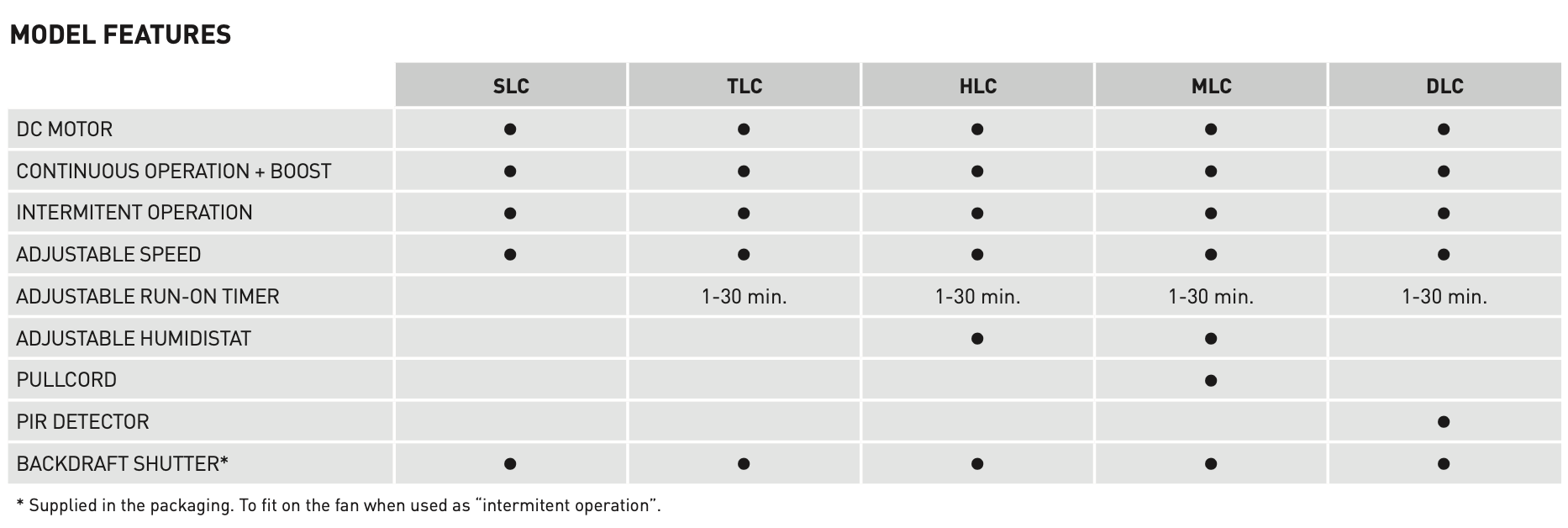

ECOAIR LC MODEL FEATURES
KEY FEATURES & BENEFITS
- Quiet Ø100 mm centrifugal bathroom extractor fan with sound levels below 32 dB(A)
- High-efficiency EC motor for ultra-low energy consumption
- Adjustable run-on timer (1–30 minutes)
- Continuous or intermittent operating modes
- Continuous background ventilation with external Boost function
- Adjustable airflow during installation
- Forward-curved centrifugal impeller for efficient ducted ventilation
- Washable inlet air filter protects the motor from dust and dirt
- Motor mounted on Silent-elastic-blocks to minimise vibration and operating noise
- Backdraft shutter included

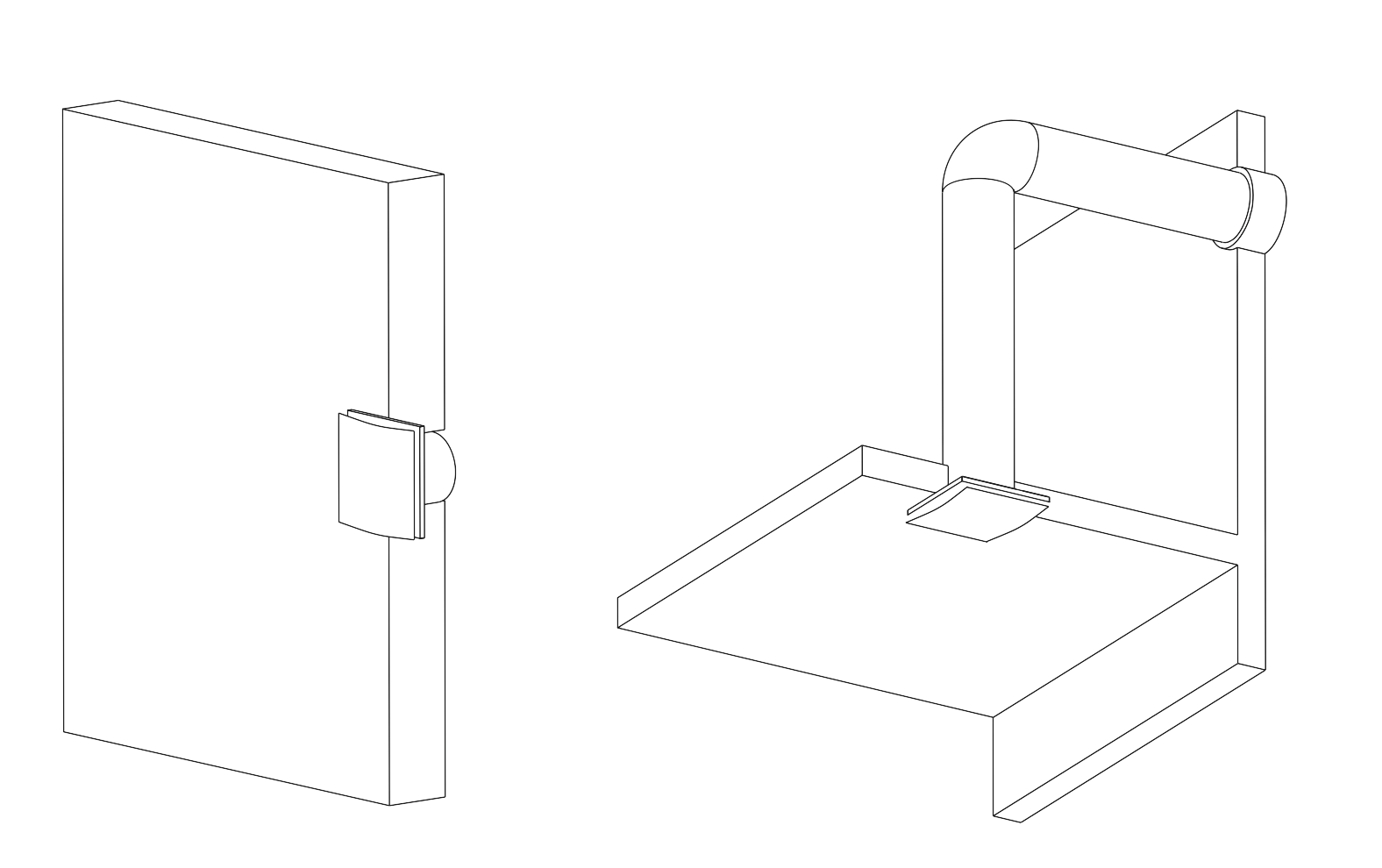

- Suitable for wall or ceiling installation
- Four interchangeable decorative front colour bars (blue, red, green and yellow)
- IPX4 protection rating
- Class II electrical insulation
- Wide operating voltage range: 90–260 V AC, 50/60 Hz
TECHNICAL INFORMATION
Interchangeable Decorative Front Colour Bars
Four Interchangeable Colour Bars Match Any Interior (blue, red, green, yellow)

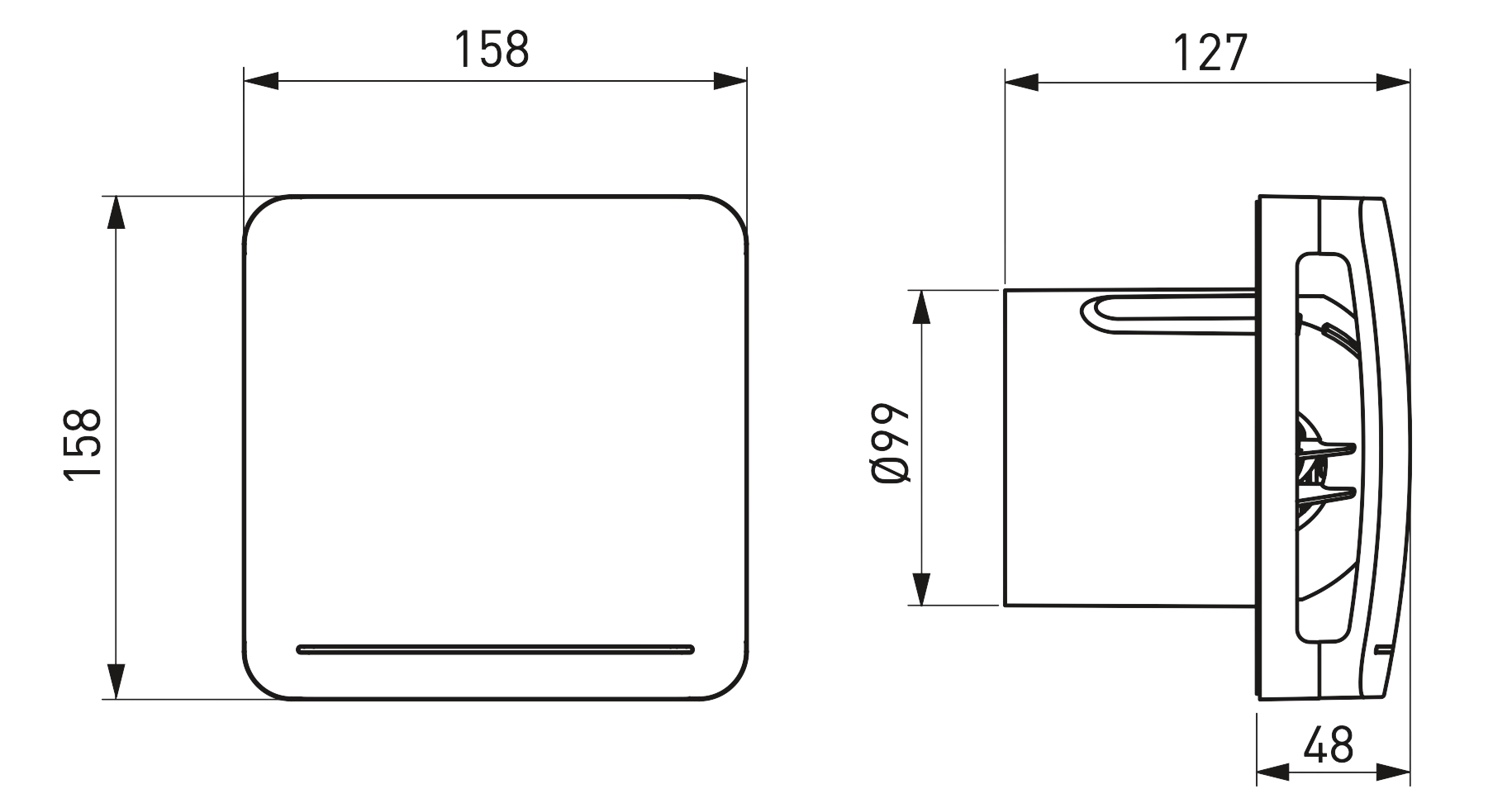

DIMENSIONS
OPERATING MODES
- Continuous Operation + BOOST
The fan operates continuously at a low background ventilation speed and automatically switches to Boost mode when activated by an external switch. After the switch is turned off, the fan continues operating for the selected timer period before returning to trickle ventilation. - Intermittent Operation
The fan starts when activated by an external switch and continues running for the preset timer period after the switch is turned off, ensuring effective removal of humidity and stale air.

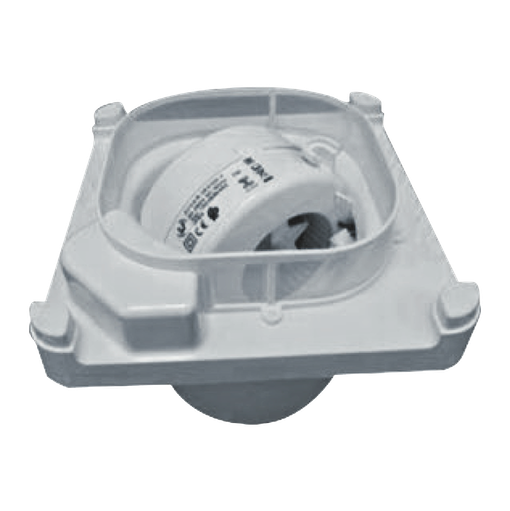

WASHABLE FILTER
The removable inlet filter can be easily cleaned to help prevent dust build-up inside the fan. Regular maintenance keeps airflow consistent, protects internal components, and supports reliable long-term operation.
APPLICATIONS
The Soler & Palau ECOAIR TLC centrifugal bathroom extractor fan is suitable for continuous or intermittent ventilation in bathrooms, shower rooms, toilets, en-suite bathrooms, utility rooms, cloakrooms, and laundry areas. The integrated run-on timer provides additional extraction after the room has been used, helping remove excess humidity and lingering odours. Designed for residential ventilation systems, it is an excellent choice for houses, apartments, flats, and holiday homes, especially where quiet operation, low energy consumption, and efficient ducted ventilation are required.
| Weight | 0.75 kg |
|---|---|
| Dimensions | 160 × 205 × 215 mm |
