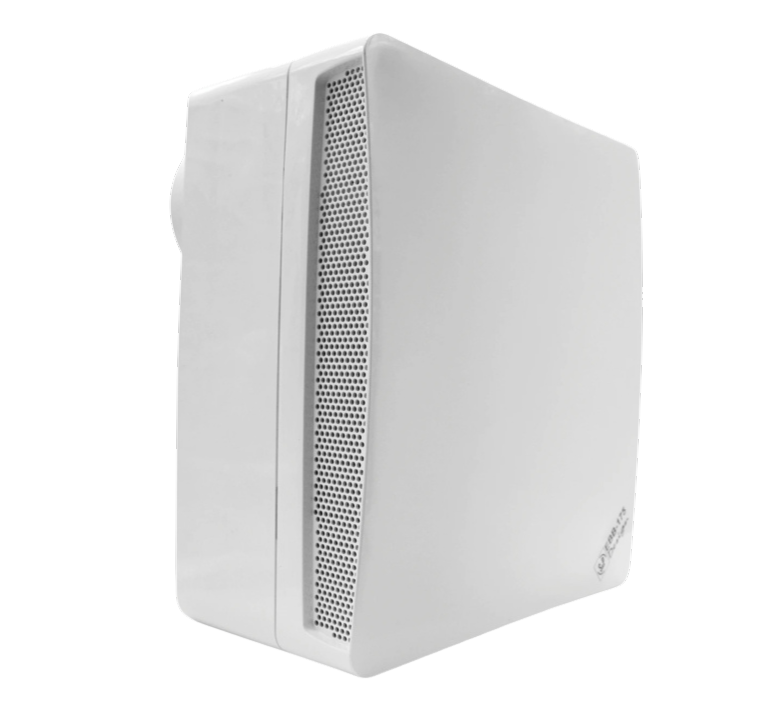

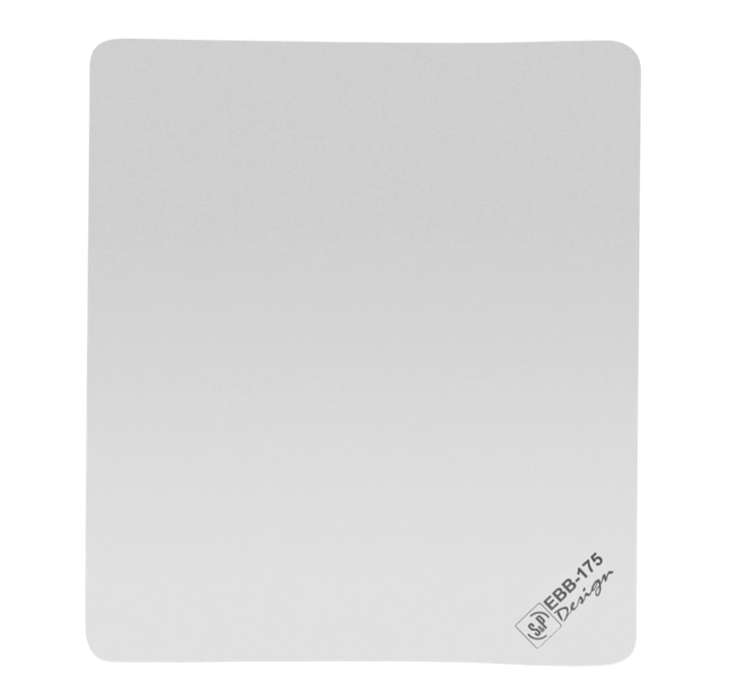

Soler & Palau EBB-175 S DESIGN Centrifugal Bathroom Extractor Fan Ø100 mm
€173.95 Incl. VAT
Soler & Palau EBB-175 S DESIGN centrifugal bathroom extractor fan with Ø100 mm duct connection and 155 m³/h airflow, backdraft shutter and durable ball bearings. Designed for domestic and commercial ventilation applications with higher system resistance, including bathrooms, toilets, shower rooms and utility rooms.
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments

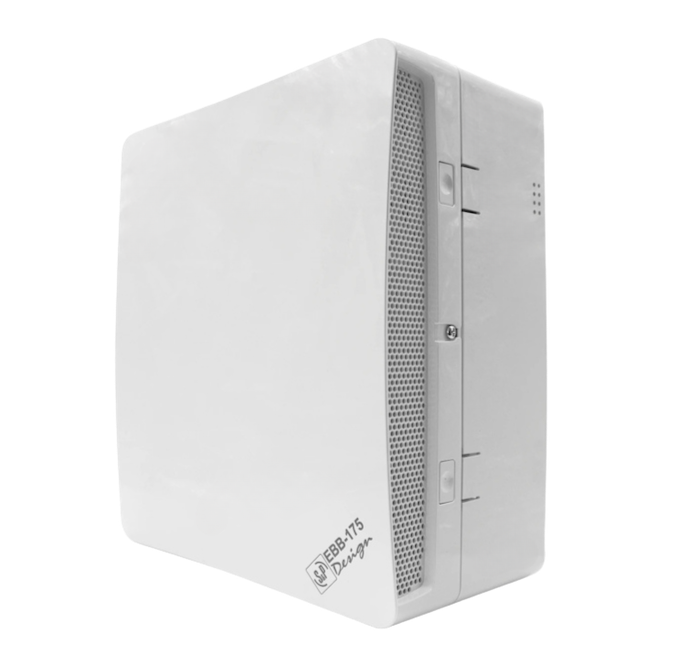

Soler & Palau EBB-175 S DESIGN Centrifugal Bathroom Extractor Fan Ø100 mm
The Soler & Palau EBB-175 S DESIGN bathroom extractor fan is designed for domestic and commercial ventilation applications where higher system resistance requires the increased pressure performance of a centrifugal fan. With a Ø100 mm duct connection and airflow up to 155 m³/h, it provides efficient air extraction for bathrooms, toilets, shower rooms, utility rooms and other spaces requiring reliable ventilation.

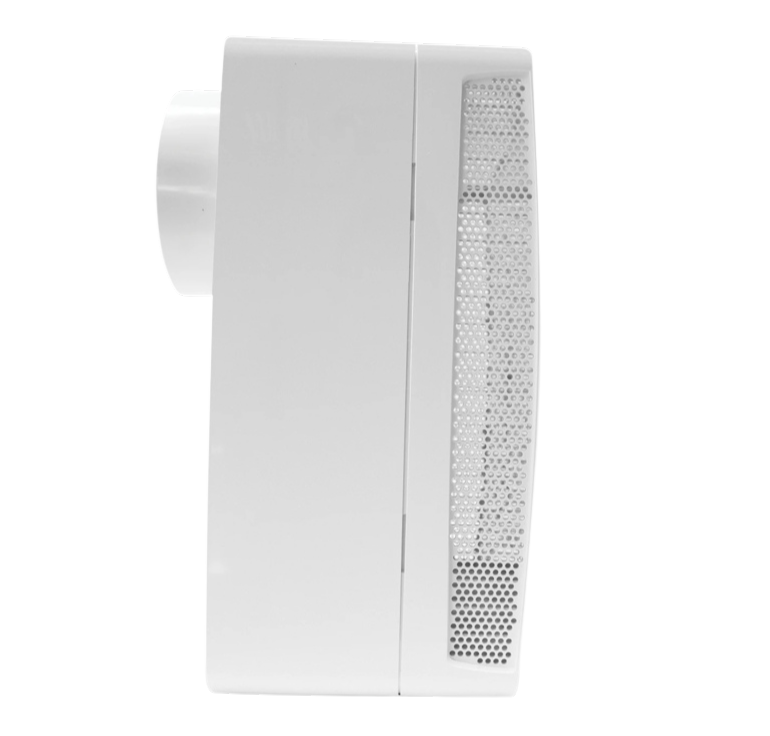

The EBB-175 S DESIGN can be connected to an individual extract duct or a communal ventilation system. Its discharge port is positioned at the side on the rear of the fan housing, allowing flexible wall or ceiling installation, including locations with restricted access.

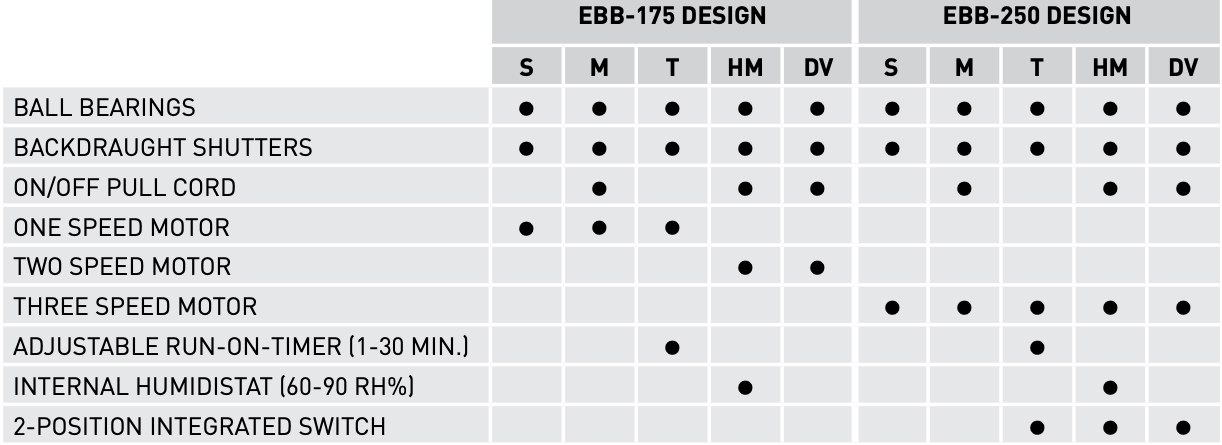

EBB DESIGN MODEL FEATURES
KEY FEATURES
- Ø100 mm extractor fan
- Maximum airflow up to 155 m³/h
- Forward-curved centrifugal impeller for effective air extraction in ventilation systems with higher resistance
- Single-speed operation – S model
- Backdraft shutter helps prevent reverse airflow through the ventilation duct
- Ball-bearing motor for reliable and durable operation
- Sound pressure level: 41 dB(A)
- Motor speed: 1250 rpm
- Electrical supply: 230 V / 50 Hz
- IP44 protection rating
- Class II electrical insulation
- Maximum operating temperature: 40°C
- Dimensions (H × W × D): 278 × 246 × 162.5 mm
- Suitable for individual and communal ventilation systems
- Flexible wall or ceiling installation
- Controlled by a light switch, independent switch or Auto-Sensor
EBB DESIGN TECHNICAL INFORMATION
DIMENSIONS

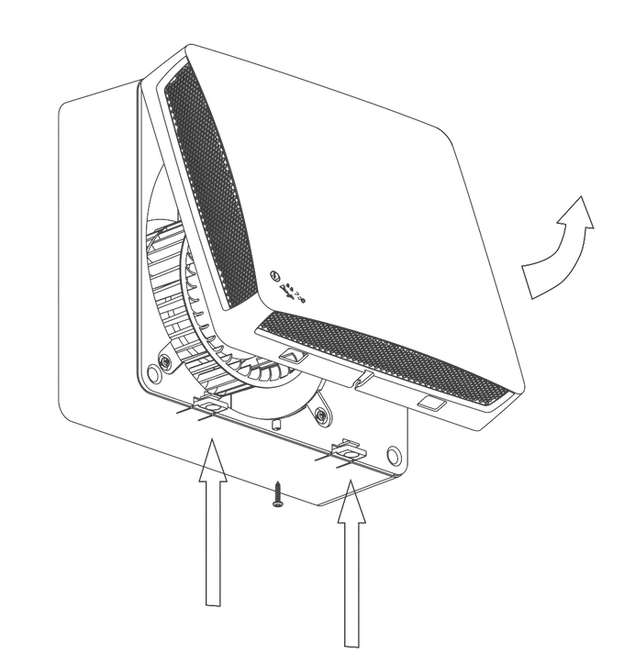

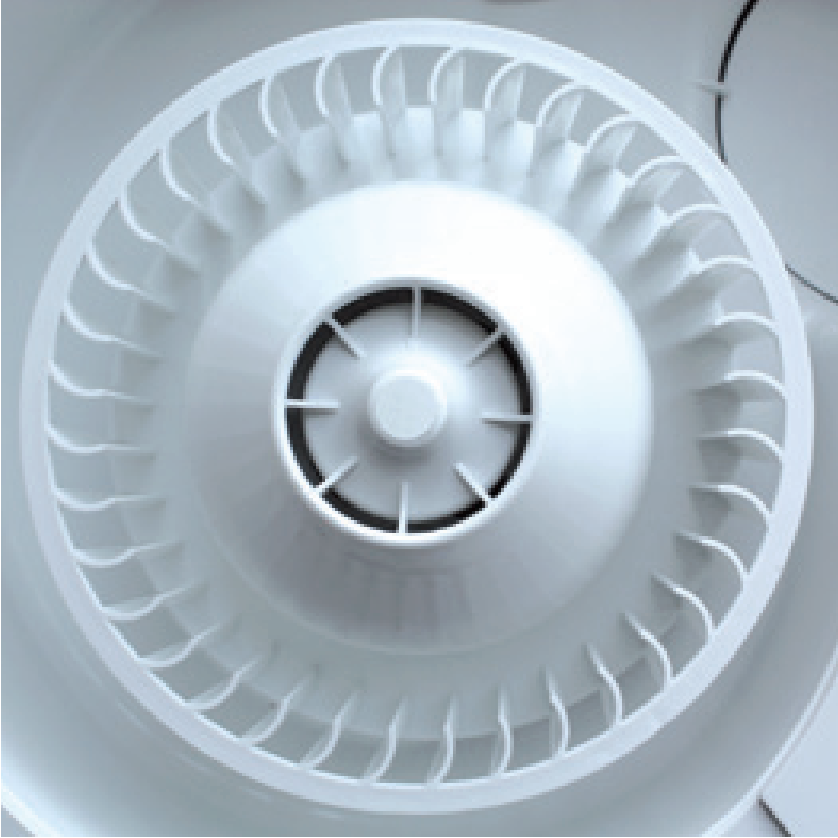

FORWARD CURVED CENTRIFUGAL IMPELLER
Forward-curved centrifugal impeller provides efficient airflow with low noise, even in ventilation systems with high static pressure resistance.

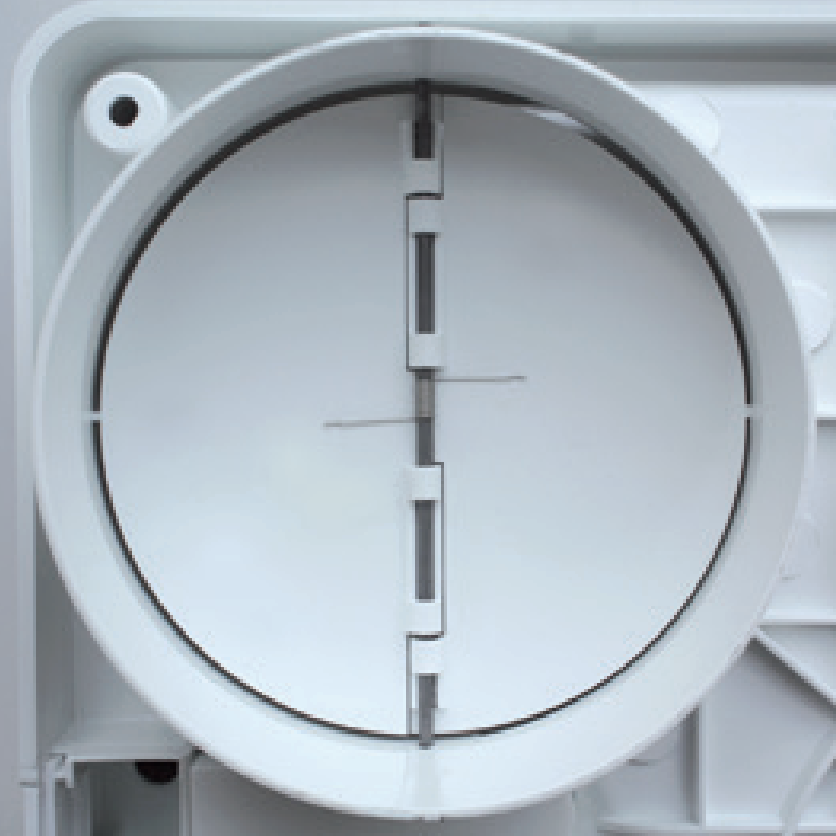

BACK DRAFT SHUTTER
Automatic back draft shutter helps prevent reverse airflow and reduce heat loss when the extractor fan is not operating.

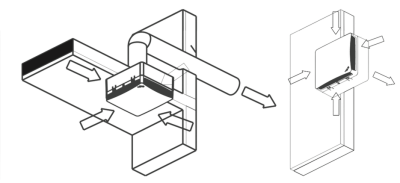

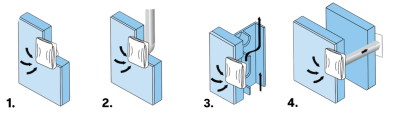

INSTALLATION OPTIONS
For Wall, Duct And Concealed Ventilation Systems
- Extract ventilation through the wall or ceiling.
- Duct extract ventilation.
- Shunt duct extract ventilation system.
- Double wall or telescopic duct extract ventilation.

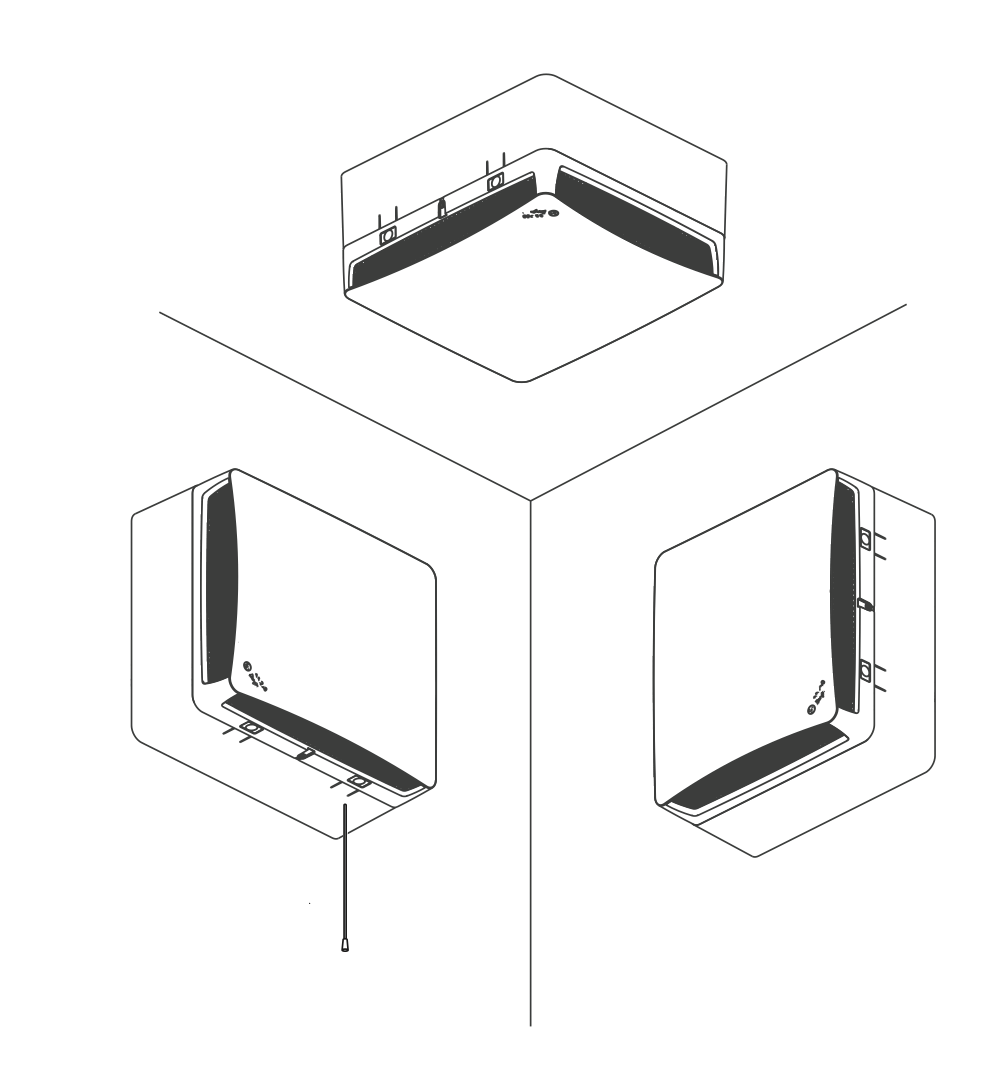

Flexible Wall Or Ceiling Installation
Wall And Ceiling Mounting With Flexible Air Discharge
APPLICATIONS
The Soler & Palau EBB-175 S DESIGN is suitable for bathrooms, toilets, shower rooms, utility rooms and other domestic or commercial spaces where air must be extracted through ductwork and higher system resistance needs to be overcome.
The fan supports a wide range of installation configurations, including extract ventilation through a wall or ceiling, duct extract ventilation, shunt duct extract ventilation systems, and double-wall or telescopic duct installations. It is particularly suitable where a conventional axial extractor fan may not provide sufficient pressure for the ventilation system.

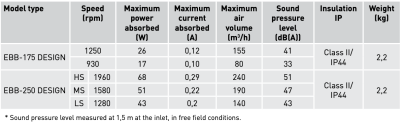

EBB DESIGN Centrifugal Extractor Fan Technical Data Sheet
| Weight | 2.8 kg |
|---|---|
| Dimensions | 200 × 265 × 283 mm |
