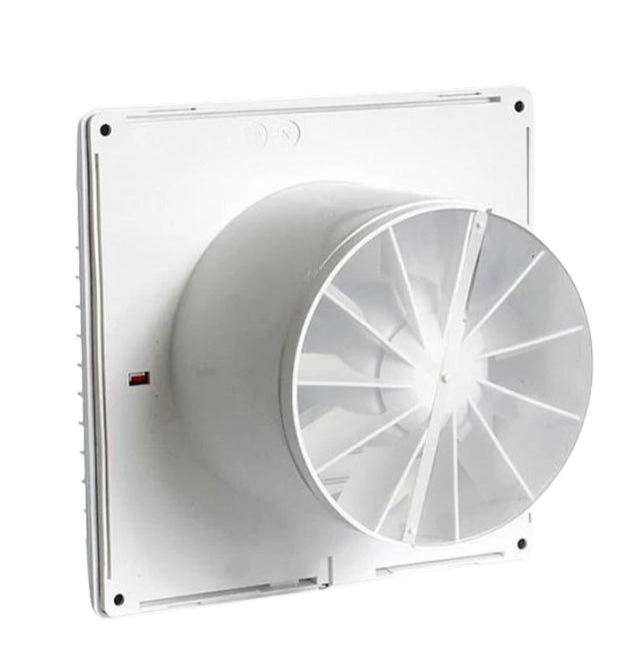

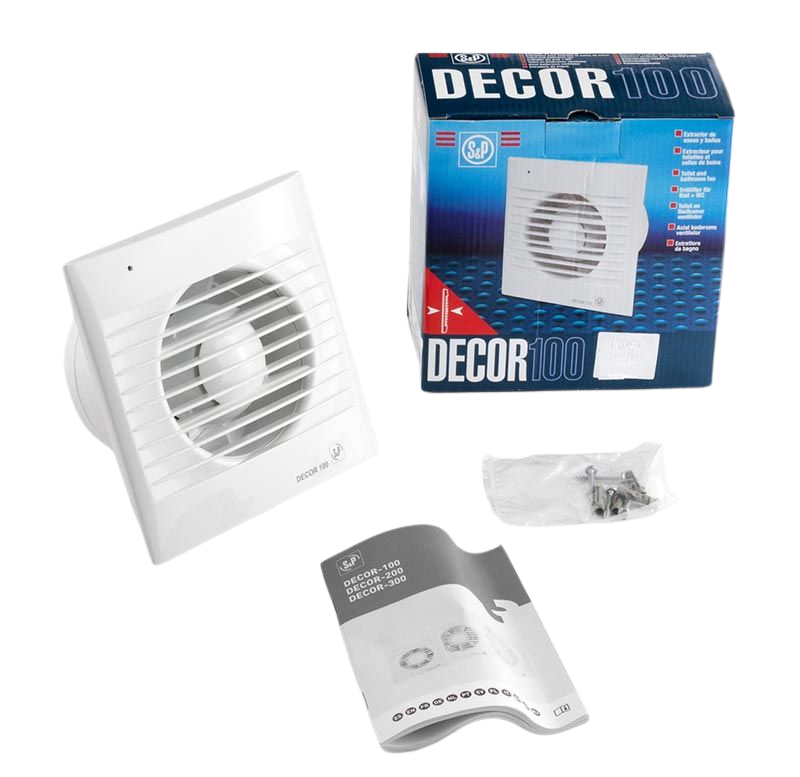

DECOR-100 CH Soler & Palau bathroom extractor fan with humidity sensor and timer Ø100mm

– The Soler & Palau DECOR-100 CH is a highly efficient 100mm axial bathroom and WC extractor fan designed for precise moisture control in domestic environments.

– Equipped with an adjustable timer (2–20 minutes) and a humidor that activates the fan when room humidity exceeds 60% RH, this domestic extractor fan ensures optimal air quality by automatically switching off only when the humidity level falls below the selected threshold.

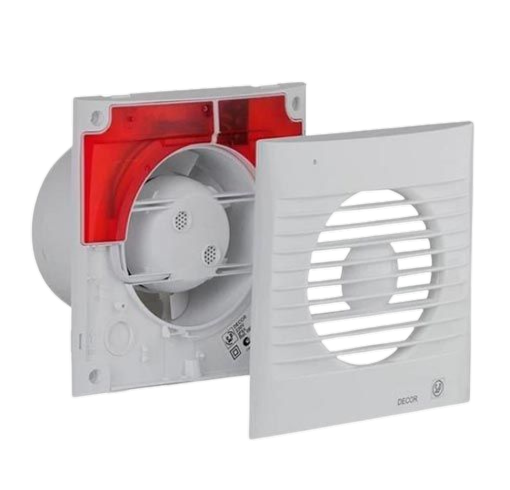

– The humidity setting can be configured between 60–90% RH, with all adjustments accessible on the PCB after removing the slim front grille.

– Delivering a 95 m³/h airflow rate, the DECOR-100 CH includes a neon indicator light and an automatic backdraft shutter that prevents reverse airflow and reduces heat loss.

– Built with durable plastic housing, Class II insulation and an IPX4 protection rating, this fan is suitable for daily operation in humid areas.

– Its 230V single-phase Class B motor features thermal overload protection and is rated for temperatures up to +40°C.

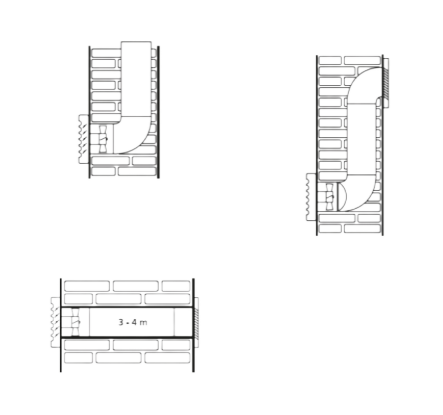

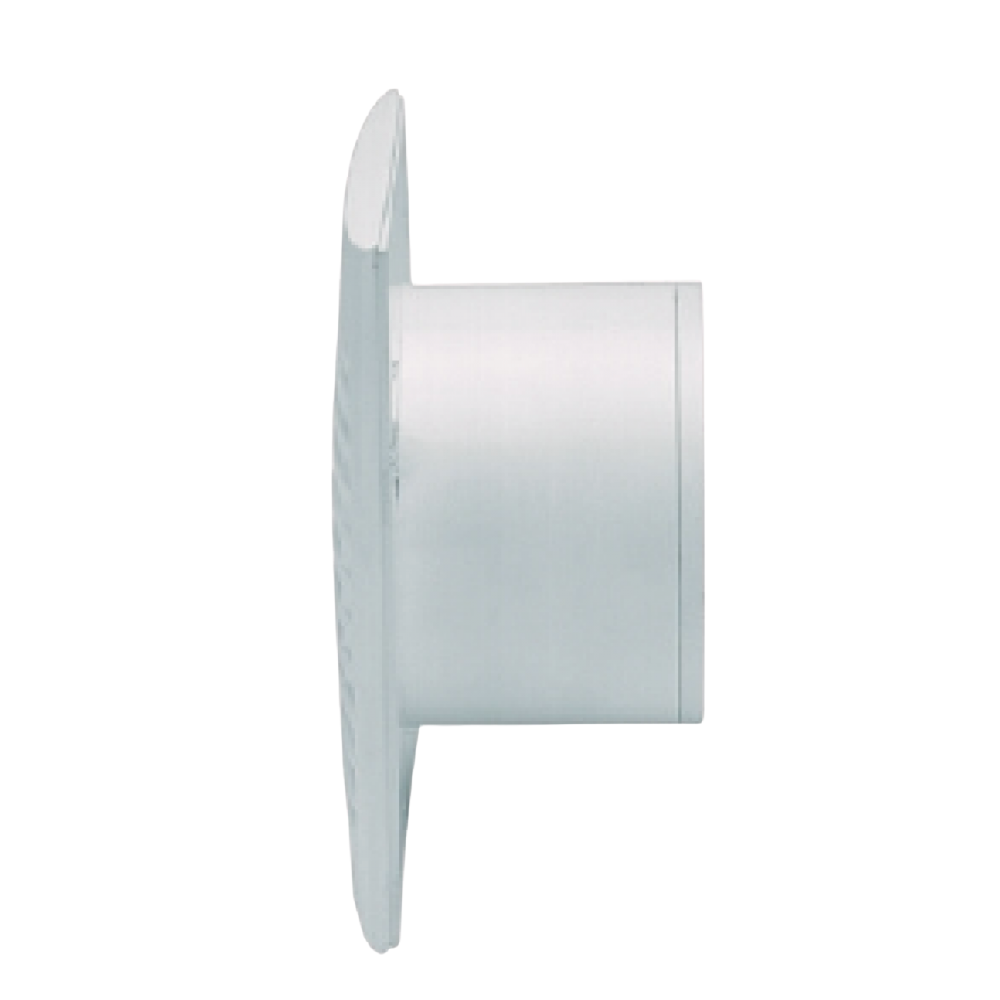

– With its elegant low-profile design and flexible wall or ceiling installation, the DECOR-100 CH is a reliable and energy-efficient solution for modern bathroom ventilation.

– Made in Spain.

TECHNICAL INFORMATION:
Connection diameter Ø: 100 mm
Adjustable run-on-timer (2-20min)
Humidity sensor
Automatic back draft shutter
Neon light indicator
Airflow rate: 95 m³/h
Sound level: 40 dB(A)
Power: 13 W
Speed: 2500 rpm
Frequency: 50 Hz
Voltage: 230 V
Insulation class: Class II
Motor class: B
Temperature range: 0 to +40 ºC
IP rating: IPX4
