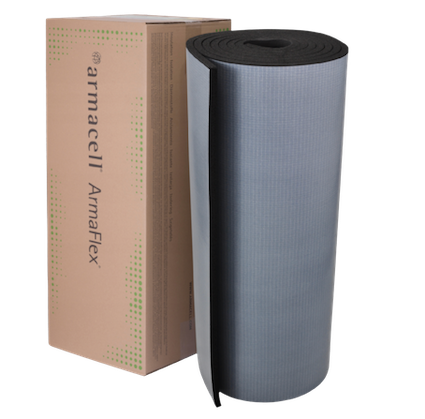

ARMAFLEX ACE-09-99/EA self-adhesive insulation sheet 9mm / 10m², Armacell
€173.30 Incl. VAT
Armacell ArmaFlex ACE-09-99/EA 9 mm self-adhesive insulation sheet for HVAC, air conditioning, refrigeration, heating and plumbing systems. Flexible closed-cell self-adhesive rubber insulation with low thermal conductivity and high water vapour diffusion resistance helps prevent condensation and reduce energy losses. Supplied as a 1 × 10 m roll, covering 10 m².
- Fast delivery across Europe (5-10 business days)
- 30-day returns
- No customs duties within the EU
- Secure payments

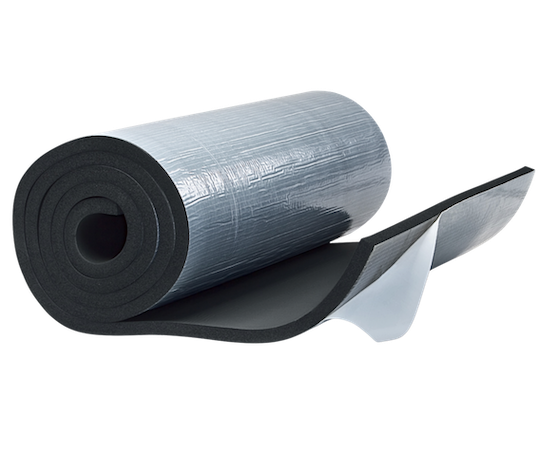

ARMAFLEX ACE-09-99/EA SELF-ADHESIVE RUBBER INSULATION SHEET 10m²
Armacell ArmaFlex ACE-09-99/EA is a 9mm self-adhesive insulation sheet for thermal and condensate insulation of pipes, air ducts, vessels, fittings and HVAC equipment. Made from flexible closed-cell synthetic rubber foam (FEF), it combines low thermal conductivity with high water vapour diffusion resistance to help prevent condensation and reduce energy losses.
The pressure-sensitive adhesive backing enables fast, convenient installation, while the flexible self-adhesive rubber insulation sheet adapts easily to complex shapes and surfaces.
KEY FEATURES
- 9mm self-adhesive insulation for professional HVAC and technical insulation applications
- Flexible closed-cell synthetic rubber foam (FEF)
- Suitable for pipes, air ducts, vessels, elbows, fittings and flanges
- Low thermal conductivity: λ ≤ 0.036 W/(m·K) at 0 °C
- High water vapour diffusion resistance: μ ≥ 7,000
- Helps prevent condensation on cold surfaces
- Reduces thermal losses and improves energy efficiency
- Material is fire-resistant — it is self-extinguishing, non-dripping, and does not spread flames.
- Self-adhesive backing for faster and easier installation
- Reaction to fire for sheets: Euroclass D-s3,d0
- Service temperature from −50 °C to +85 °C when the sheet is fully adhered to the surface
- Black finish
- Made in Poland
ARMAFLEX ACE-09-99/EA DIMENSIONS
APPLICATIONS
The ArmaFlex ACE self-adhesive insulation sheet is suitable for thermal and condensation insulation in:
- Air conditioning and refrigeration systems
- Ventilation and HVAC ductwork
- Refrigerant and chilled-water pipes
- Heating and plumbing installations
- Air ducts and vessels
- Elbows, fittings, flanges and other HVAC components
- Process equipment requiring thermal insulation and condensation control
MORE ABOUT ARMAFLEX ACE
Armacell ArmaFlex ACE Insulation Data Sheet
| Weight | 6.62 kg |
|---|---|
| Dimensions | 1050 × 410 × 410 mm |
